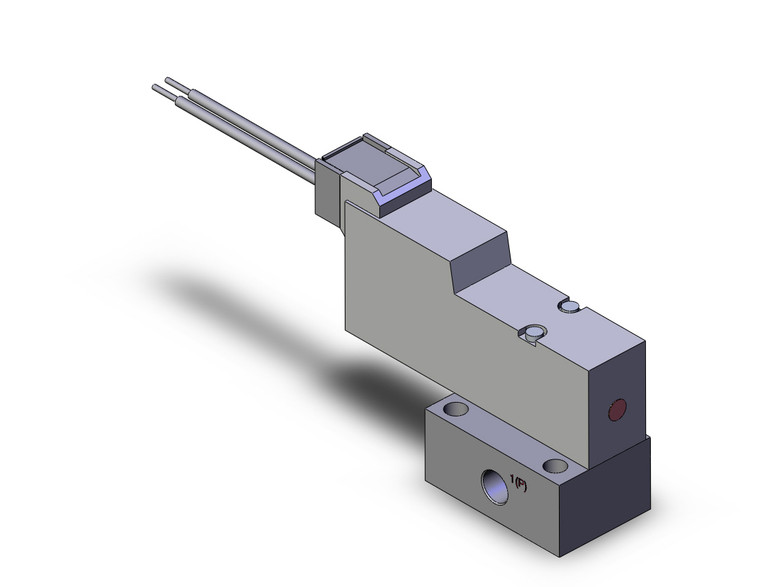

SMC VQD1151W-6M-M5 4/5 Port Solenoid Valve
- SKU:
- VQD1151W-6M-M5
- Condition:
- New
- Availability:
- In stock: 6
- Port Size:
- M5
- Electrical Entry:
- M Plug Connector, w/Lead Wire, with Light/Surge Voltage Suppressor
- Voltage:
- 12 VDC
- Option:
- For Large Flow, Vacuum
- Body:
- Base Mounted
- Actuation:
- Single Type
Description
VQD1000, 4 Port Direct Poppet Valve
VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time.
-
- Fluid: Air/inert gas- Operating pressure range: 0MPa/10Torr (Vacuum) - 0.7MPa (7.1kgf/cm 2 )
- Effective area (Cv factor): Standard type 0.9mm 2 (0.05);high flow type 1.5mm 2 (0.08)
- Coil rated voltage: 12, 24VDC
- Response time: ON: 4ms; OFF: 2ms
- Ambient/fluid temp: -10 to 50 C
