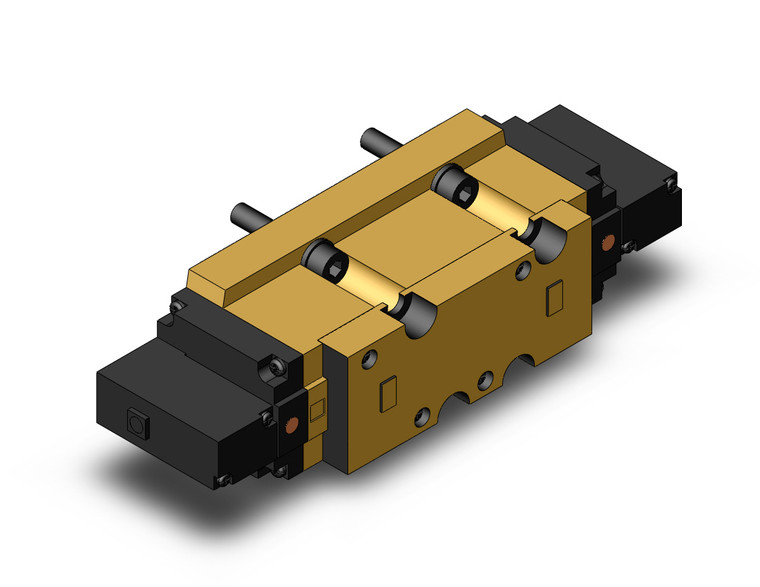

SMC VSS8-10-FG-D-3EZ-V1 4/5 Port Solenoid Valve
SMC
$199.95
VS*8-10 (for USA), ISO Interface Solenoid Valve
VSS/VSR size 1, 2 3 are plug-in, base mounted interface valves conforming to ISO standards. The valve design offers maximum flexibility and is available in either a high flow rubber seal (model VSR), or matched ground spool and sleeve (model VSS). The lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work. In addition, SMC now offers a light weight, large capacity mini ISO valve (size 01).
- Fluid: air, inertia gas- Maximum operating pressure: 1.0MPa
- Minimum operating pressure: 0.1MPa
- Flow rate: Cv 5.6
- Coil rated voltage: 12, 24VDC
- Rating: IP67, NEMA4 Hose Down
-
- Manufacturer Part #:
- VSS8-10-FG-D-3EZ-V1
- Number of Solenoids:
- Double
- Options:
- Standard Internal Pilot
- Seal Type:
- Metal
- Pilot Type:
- External Individual Pilot Exhaust
- Sub-plate:
- w/o Subplate
- Voltage:
- 24VDC
