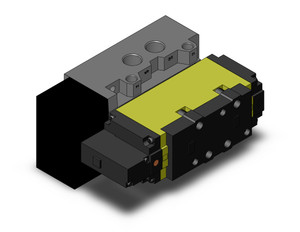

SMC VSS8-8-FG-S-3EZ 4/5 Port Solenoid Valve
- SKU:
- VSS8-8-FG-S-3EZ
- Condition:
- New
- Option:
- Standard Internal Pilot
- Subplate:
- w/o Subplate
- Pilot:
- Pilot Exhaust through Footprint
- Voltage:
- 24VDC
- Number of Solenoids:
- Single
- Configuration:
- 2-position
- Seal Type:
- Metal
Description
VS*8-8 (for USA), ISO Interface Solenoid Valve
VSS/VSR size 1, 2 3 are plug-in, base mounted interface valves conforming to ISO standards. The valve design offers maximum flexibility and is available in either a high flow rubber seal (model VSR), or matched ground spool and sleeve (model VSS). The lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work. In addition, SMC now offers a light weight, large capacity mini ISO valve (size 01).
- Fluid: air, inertia gas- Maximum operating pressure: 1.0MPa
- Minimum operating pressure: 0.1MPa
- Flow rate: Cv 4.0
- Coil rated voltage: 12, 24VDC
- Rating: IP67, NEMA4 Hose Down
-
