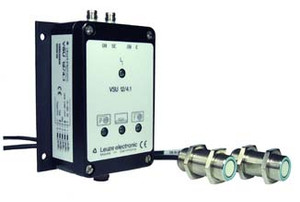

Leuze VSU 12/4.4 Industrial Sensor System
Leuze
$1,020.00
The VSU 12/4.4 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: 0...50 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model VSU 12/4.4). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 12
- Principle of physics:
- Ultrasonics
- Application:
- Splice inspections
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Function:
- Splice detected
- Function:
- Weak signal.
- Switching frequency:
- 200 Hz
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 5 -pin
- Design:
- Cubic
- Dimension (W x H x L):
- 84 mm x 37 mm x 98 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Net weight:
- 400 g
- Type of display:
- LED
- Ambient temperature, operation:
- 0 ... 50 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272890
- ECLASS 8.0:
- 27272890
- ECLASS 9.0:
- 27272890
- ECLASS 10.0:
- 27272892
- ECLASS 11.0:
- 27272892
- ECLASS 12.0:
- 27272892
- ECLASS 13.0:
- 27272892
- ECLASS 14.0:
- 27272892
- ECLASS 15.0:
- 27272892
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
- Declaration of Conformity:
- View
