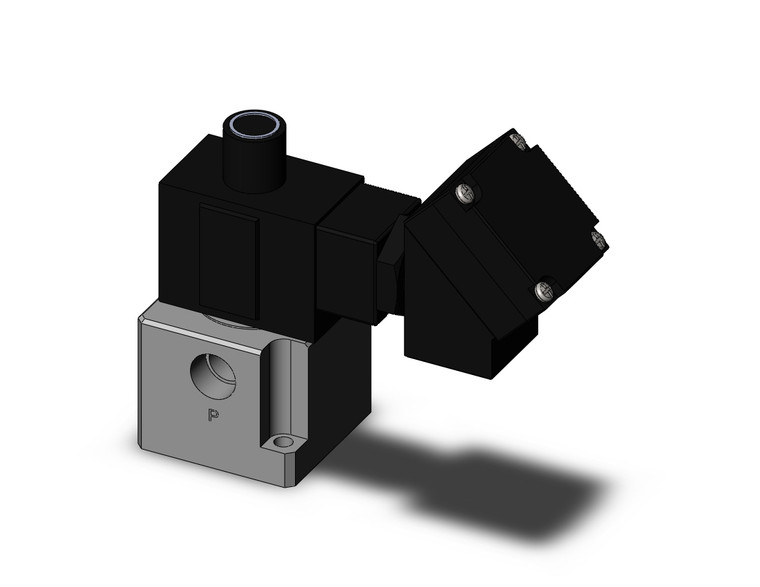

SMC VT317-5TZ-02 Valve Sol 24Vdc
- SKU:
- VT317-5TZ-02
- Condition:
- New
- CE Compliant:
- No
- Thread:
- Rc
- Port Size:
- 1/4, 8A
- Light & Surge Suppressor:
- Light w/Surge Voltage Suppressor
- Electrical Entry:
- Conduit Terminal
- Voltage:
- 24 VDC
- Valve Option:
- Standard
- Body Type:
- Body Ported
Description

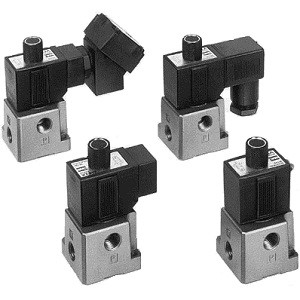

VT/VO317, 3 Port Direct Operated Poppet Valve
Series VT 3 port, direct operated poppet valves are compact in size, yet provide large flow capacity, and low power consumption. The series is suitable for use in vacuum applications. The VT valve is a single valve with 6 functions (universal porting type) such as N.C. valve, N.O. valve, divider valve, selector valve, etc. The manifold style valve, series VO, can be easily converted from N.C. (normally closed) to N.O. (normally open) by merely turning over the switch cover.
-
- 3 port direct operated poppet valve - Rubber seal
- Actuation: direct operated 2 position single solenoid
- Operating pressure range: 0 to 0.9 MPa
