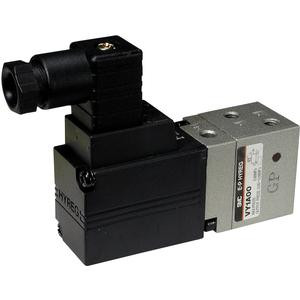

SMC VY1200-102N-GN Hybrid Regulator
- SKU:
- VY1200-102N-GN
- Condition:
- New
- Availability:
- In stock: 13
- Option:
- Pressure Gauge, Silencer
- Thread:
- NPT
- Port Size:
- 1/4
- Power Source, Command Signal:
- 24V, 0~10V
- Pilot:
- Internal Pilot
- Size:
- Base Mounted
Description
VY1, Electro Pneumatic Regulator
A hybrid regulator is created from a regulator and a solenoid valve with the electro-pneumatic regulator series VY1. A maximum effective area of 670mm (2B) can be covered by the combination of an ultra-compact electro-pneumatic pilot valve (22.4 X 30 X 39) and a 3 port, high-capacity exhaust main regulator (VEX1*00 series). Having the amplifier built into the electro-pneumatic pilot valve, only an external (24V DC) power supply and (1 to 5V DC) signal voltage need to be connected making handling simple. Using the VVEXB/2/4 series, a maximum 10 station manifold is possible.
-
- Electro pneumatic regulator- Step-less control through electric signals
- Simple circuit configuration
- Internal or external pilot available
- Base mounted or body ported styles
-
