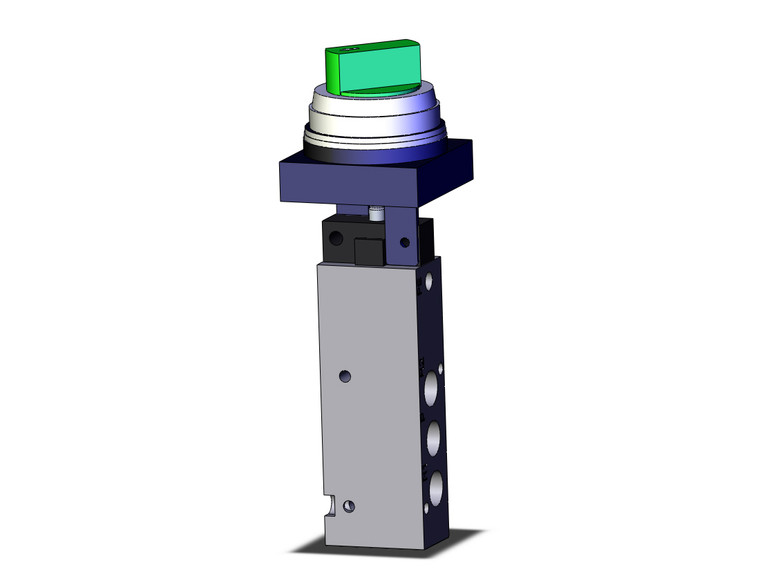

SMC VZM550-01-34G Mechanical Valve
- SKU:
- VZM550-01-34G
- Condition:
- New
- Body Option:
- 0 (Standard)
- Thread:
- Rc(PT)
- Style:
- 34 [Selector (2 Position)]
- Suffix:
- G (Push Button Selector Color Green)
- Accessory:
- None
Description
VZM500, 5 Port Mechanical Valve Series
The VZM series is a 5 port mechanical valve. It is compact in design with a large flow capacity (VZM400 Cv 0.55, VZM500 Cv 0.6). The VZM is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot.
-
- Fluid: air, inert gas- Operating pressure: 0.15 to 0.7MPa
- Ambient and fluid temp: -5 to 60 C (no freezing)
- Effective area (Cv): 0.6
- Port size: main valve Rc(PT) 1/8, pilot valve (EXH) M5x0.8
-
