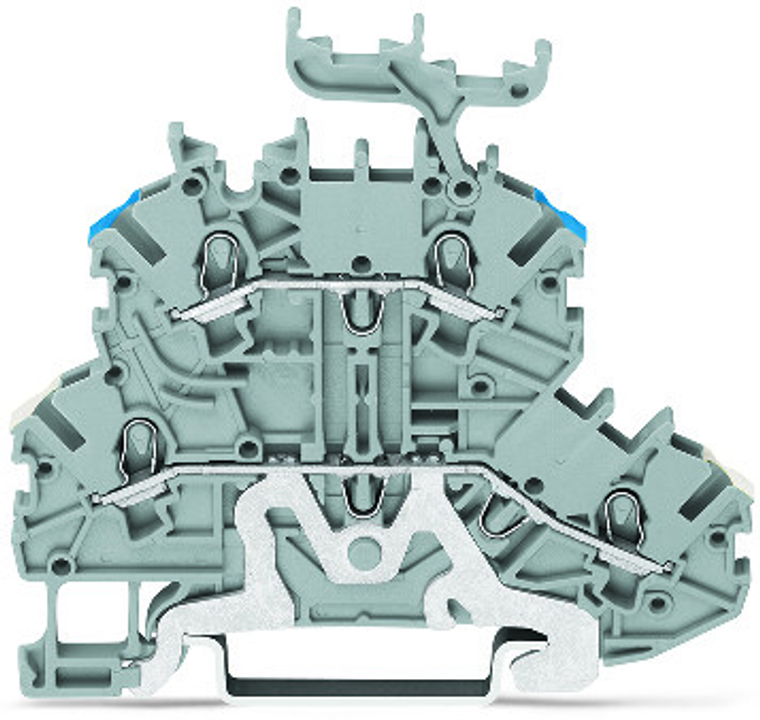

Additional Information
actuation type: |
Push-in || Operating tool |
approvals per: |
UL 1059 |
color: |
Gray |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP« |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
51.7 mm / 2.035 inch |
design: |
Horizontal type |
fine stranded conductor: |
0.14 ª 1.5 mm / 24 ª 16 AWG |
fine stranded conductor with ferrule push in termination: |
0.5 ª 0.75 mm / 20 ª 18 AWG |
fine stranded conductor with insulated ferrule: |
0.14 ª 0.75 mm / 24 ª 18 AWG |
fire load: |
0.142 MJ |
flammability class per ul94: |
V0 |
height: |
69.7 mm / 2.744 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) « Overvoltage category III / Pollution degree 3 |
marking level: |
Center/side marking |
mounting type: |
DIN-35 rail |
nominal cross section: |
1 mm |
nominal voltage iii 3: |
500 V |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
number of connection points: |
2 |
number of connection points 2: |
2 |
packaging type: |
Box |
rated current: |
16 A |
rated current 2: |
18 A |
rated current csa use group b: |
0.416666666666667 |
rated current csa use group c: |
0.416666666666667 |
rated current ul use group b: |
15 A |
rated current ul use group c: |
15 A |
rated surge voltage iii 3: |
6 kV |
rated voltage csa use group b: |
600 V |
rated voltage csa use group c: |
600 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group c: |
300 V |
ratings per: |
IEC/EN 60947-7-1 |
solid conductor: |
0.14 ª 1.5 mm / 24 ª 16 AWG |
solid conductor push in termination: |
0.5 ª 1.5 mm / 20 ª 16 AWG |
strip length: |
9 ª 11 mm / 0.35 ª 0.43 inch |
weight: |
9.458 g |
width: |
3.5 mm / 0.138 inch |
wiring direction: |
Front-entry wiring |
