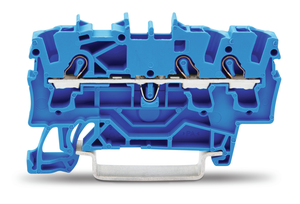

WAGO 2002-1404 4-Conductor Through Terminal Block, 2.5 mm², Ex e II and Ex i Applications, Side and Center Marking, DIN-Rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, Blue
Wago
$2.90
TOPJOBS feedthrough terminal block; rail mount; 4-conductor; 5.2 mm wide; blue.
The WAGO 2002 TOPJOB S series neutral-through terminal block is a blue, single-deck component designed for Ex e II / Ex I applications. It features side and center marking slots and accommodates four wires (two push-in connections on each side) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block supports rated currents of 24A and 32A and utilizes Push-in CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm, equivalent to model 20021404.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- Color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.210 MJ
- flammability class per ul94:
- V0
- height:
- 86 mm / 3.386 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 26 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 12.600 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
