Wago

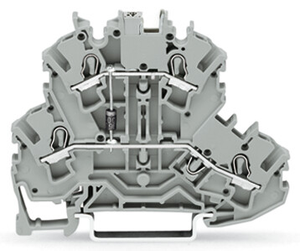

WAGO 2002-2211/1000-410

SKU:

2002-2211/1000-410

UPC:

MPN:

2002-2211/1000-410

Condition:

New

actuation type:

Push-in || Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

51.7 mm / 2.035 inch

design:

Horizontal type

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.219 MJ

flammability class per ul94:

V0

height:

69.7 mm / 2.744 inch

insulation material:

Polyamide (PA66)

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

0.5 A

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

10.300 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
