Wago

WAGO 2002-2214/1000-491

(No reviews yet) Write a Review
SKU:
2002-2214/1000-491
MPN:
2002-2214/1000-491
Condition:
New
actuation type:
Push-in || Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
51.7 mm / 2.035 inch
design:
Horizontal type
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.234 MJ
flammability class per ul94:
V0
height:
69.7 mm / 2.744 inch
insulation material:
Polyamide (PA66)
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
2.5 mm
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
rated current:
0.5 A
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
10.100 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
$24.45

Description

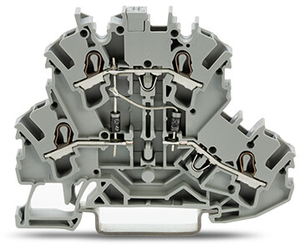

Double-deck double-diode terminal block; 2 x 1N4007 (P-N between first and second level, N-P on right side of second level); rail mount; 2-conductor; 5.2 mm wide; gray.

The WAGO 2002 TOPJOB S series component feed-through terminal block is a double-deck terminal block featuring two 1N4007 diodes with anodes positioned on the top and right side. It includes side, lateral, and center marking slots and is gray in color. The terminal block supports one feed-through and one disconnect feed-through pole, accommodating four wires with two push-in connections each. It has a nominal cross-section of 2.5mm² and is suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block is rated for a current of 0.5A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 and has a width of 5.2mm, equivalent to model number 200222141000491.
