Wago

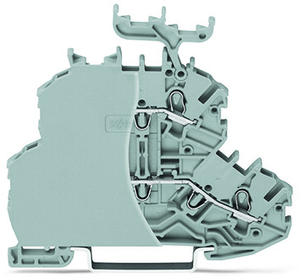

WAGO 2002-2231/099-000

SKU:

2002-2231/099-000

UPC:

MPN:

2002-2231/099-000

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

UL 1059

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

61.8 mm / 2.433 inch

design:

Horizontal type

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.310 MJ

flammability class per ul94:

V0

height:

69.7 mm / 2.744 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

number of connection points:

2

number of connection points 2:

2

packaging type:

Box

rated current:

24 A

rated current ul use group b:

15 A

rated current ul use group c:

15 A

rated current ul use group d:

0.208333333333333

rated surge voltage iii 3:

8 kV

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

13.653 g

width:

6.2 mm / 0.244 inch

wiring direction:

Front-entry wiring
