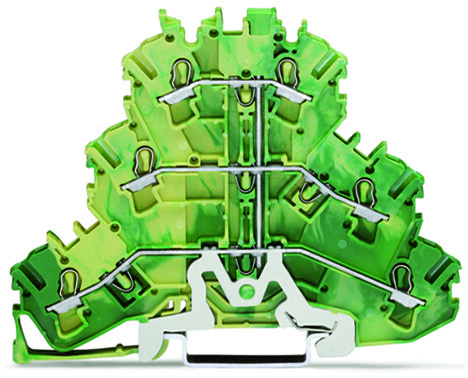

Triple-deck terminal block; 6-conductor ground terminal block; PE; without marker carrier; suitable for Ex e II applications; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm; Push-in CAGE CLAMPp>
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm
- Solid conductor: 0.25 4 mm / 22 12 AWG
- Solid conductor, push-in termination: 0.75 4 mm / 18 12 AWG
- Fine-stranded conductor: 0.25 4 mm / 22 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 2.5 mm / 18 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 2.5 mm / 18 12 AWG
- Strip length: 10 12 mm / 0.39 0.47 inch
- Total number of connection points: 6
- Total number of potentials: 1
- Number of levels: 3
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
Geometrical Data
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 69.5 mm / 2.736 inch
- Depth: 93.3 mm / 3.673 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: PE
- Marking level: Center/side marking
Material Data
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.314 MJ
- Weight: 20.500 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918691277
- Customs Tariff No.: 85369010000
The WAGO 2002 TOPJOB S series ground/earthing terminal block is a triple-deck unit with internal commoning and side/center marking slots, suitable for Ex e II applications. It features a "PE" marking and comes in green-yellow color. The terminal block supports one grounding/protective-earth (1PE) connection and accommodates three pairs of 2-wires (3 push-in + 3 push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It utilizes Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5.2mm, equivalent to model 20023207.
- baud rate:
- 10/100 Mbit/s
- baud rate communication fieldbus 1:
- 10/100 Mbit/s
- color:
- Light gray
- communication:
- Modbus (TCP, UDP)
- configuration options:
- WAGO-I/O-CHECK || Web-Based Management || CODESYS Library
- conformity marking:
- CE
- connection technology communication fieldbus:
- Modbus TCP/UDP: 2 x RJ-45
- connection technology device configuration:
- 1 x Male connector: 4-pole
- connection technology field supply:
- 6 x CAGE CLAMP
- connection technology system supply:
- 2 x CAGE CLAMP
- connection type 1:
- System/field supply
- country of origin sales organisation germany:
- DE
- cpu:
- 32 bits
- current carrying capacity power jumper contacts:
- 0.416666666666667
- data memory:
- 4 MB
- depth:
- 71.9 mm / 2.831 inch
- depth from upper edge of din rail:
- 64.7 mm / 2.547 inch
- emc emission of interference:
- Per EN 61000-6-3, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- ethernet protocols:
- HTTP(S) || BootP || DHCP || DNS || SNTP || FTP(S) || SNMP
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 2.230 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- indicators:
- LED (LINK/ACT) green: Network connection via ports 1 2: LED (MS, NS) red/green: Status of node, network: LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user: LED (A, B) green: System power supply status, field su
- input and output fieldbus process image max:
- 1020 Worte/1020 Worte
- input current typ at nominal load 24 v:
- 500 mA
- isolation:
- 500 V system/field
- mounting position:
- Any
- mounting type:
- DIN-35 rail
- non volatile software memory:
- 32 kB
- number of modules per node max:
- 250
- number of modules without a bus extension max:
- 64
- number of outgoing power jumper contacts:
- 3
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 390 mA
- power supply efficiency typ at nominal load 24 v:
- 0.9
- program memory:
- 4 MB
- programming environment:
- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
- programming languages per iec 61131 3:
- Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts
- supply voltage system:
- 24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -25 85 C
- total current system supply:
- 1700 mA
- transmission medium communication fieldbus:
- Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length
- transmission performance:
- Class D per EN 50173
- vibration resistance:
- 4g per IEC 60068-2-6
- visualization:
- Web Visu
- weight:
- 149.900 g
- width:
- 61.5 mm / 2.421 inch
