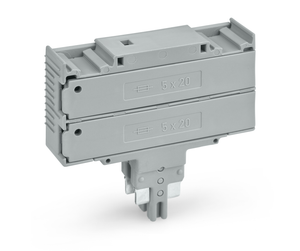

Double fuse plug; for 5 x 20 mm miniature metric fuse; with indicator lamp; 230 V; 10.4 mm wide.
The WAGO Double Fus. Plug from the 2003 TOPJOB S series is a 2-pole (2P) component designed for a supply voltage of 230Vdc with an LED indicator. It has a rated current of 6.3A and comes in a gray color. The plug-in mounting has a width of 10.4mm and is compatible with 5x20mm miniature metric fuses. It is equivalent to the model number 20039111000923.
- approvals per:
- UL 1059
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.181 MJ
- marking level:
- Center marking
- nominal voltage iii 3:
- 250 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 0.25 mA
- operation status indicator:
- 230 V
- packaging type:
- Box
- rated current:
- 6.3 A
- rated current ul use group b:
- 6.3 A
- rated current ul use group c:
- 6.3 A
- rated voltage ul use group b:
- 250 V
- rated voltage ul use group c:
- 250 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 12.790 g
- width:
- 10.4 mm / 0.409 inch
