3-conductor through terminal block; 6 mm; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMPp>
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 41 A
- Rated current (2): 57 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 50 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 50 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 50 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 50 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 36 A
- Rated current (Ex e II) with jumper: 33 A
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 6 mm
- Solid conductor: 0.5 10 mm / 20 8 AWG
- Solid conductor, push-in termination: 2.5 10 mm / 14 8 AWG
- Fine-stranded conductor: 0.5 10 mm / 20 8 AWG
- Fine-stranded conductor with ferrule with plastic collar: 2.5 6 mm / 16 10 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 2.5 6 mm / 16 10 AWG
- Strip length: 13 15 mm / 0.51 0.59 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 7.5 mm / 0.295 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 73.5 mm / 2.894 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: blue
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.193 MJ
- Weight: 11.790 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332999694
- Customs Tariff No.: 85369010000

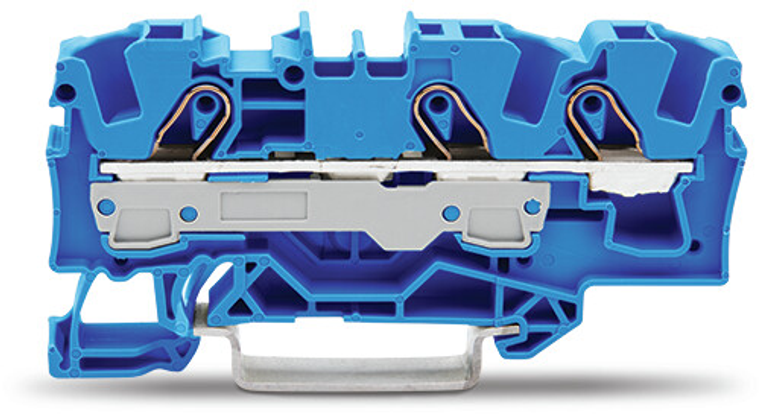

The WAGO 2006 TOPJOB S series neutral-through terminal block is a blue, 1-deck/level component with side/lateral and center marking slots, suitable for Ex e II / Ex I applications. It features a neutral-through pole (N) with 3 push-in wire connections (1+2) and supports a nominal cross-section of 6mm², accommodating wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block is rated for currents of 41A and 57A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 7.5mm.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fire load:
- 0.011 MJ
- flammability class per ul94:
- V0
- height:
- 73.3 mm / 2.886 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 41 A
- rated current 2:
- 57 A
- rated current csa use group b:
- 50 A
- rated current csa use group c:
- 50 A
- rated current ex e ii:
- 36 A
- rated current ex e ii with jumper:
- 33 A
- rated current ul use group b:
- 50 A
- rated current ul use group c:
- 50 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 550 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 2.5 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 11.790 g
- width:
- 7.5 mm / 0.295 inch
- wiring direction:
- Front-entry wiring
