WAGO 2006-921/1000-836 Fuse plug; with pull-tab; for 5 x 30 mm miniature metric fuse; with indicator lamp; 230 V; 7.4 mm wide; gray
Wago
$19.30
(No reviews yet)
Write a Review
Write a Review
Wago

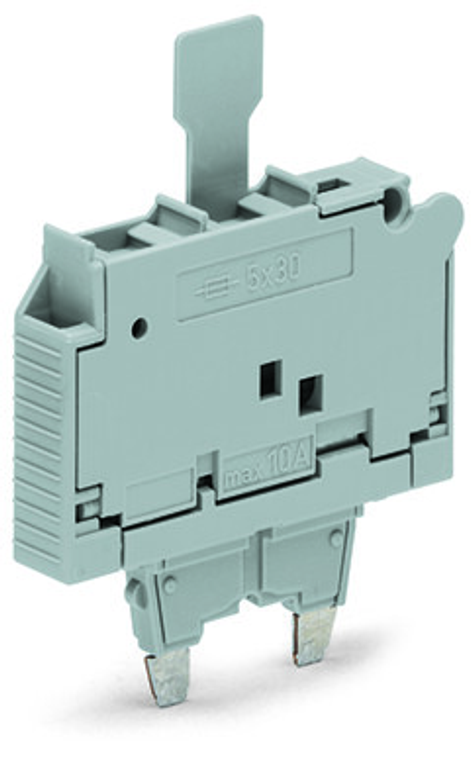

WAGO 2006-921/1000-836 Fuse plug; with pull-tab; for 5 x 30 mm miniature metric fuse; with indicator lamp; 230 V; 7.4 mm wide; gray
Fuse plug with pull-tab; for 5 x 30 mm miniature metric fuse; with indicator lamp; 230 V; 7.4 mm wide.
The WAGO 2006 TOPJOB S series fuse plug with pull-tab and LED is designed for a supply voltage of 230Vdc and a rated current of 10A. It features a gray color and is suitable for plug-in mounting. This fuse plug is compatible with 5x30mm miniature metric fuses and is equivalent to the model number 20069211000836.
- approvals per:
- C22.2 No 158
- type of fuse:
- Cylindrical fuse 5 x 30 mm
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- marking level:
- Center marking
- nominal voltage iii 3:
- 800 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 230 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 15 A
- rated current csa use group c:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 230 V
- rated voltage ul use group c:
- 230 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 6.532 g
- width:
- 7.4 mm / 0.291 inch
