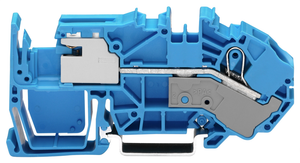

1-conductor N-disconnect terminal block; 16 mm²; Push-in CAGE CLAMP; 16,00 mm²; blue.
The WAGO 2016 TOPJOB S series neutral-through terminal block is a blue, 1-deck/level terminal block featuring a slide-link neutral-disconnect and side/lateral and center marking slots. It includes one N-disconnect link for a single wire with a push-in connection, supporting a nominal cross-section of 16mm² for the main feed-through conductor. It accommodates wire sizes ranging from 0.5mm² to 25mm² or #20AWG to #4AWG and is rated for a current of 65A. The terminal block utilizes Push-in CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a width of 12mm, equivalent to model 20167114.
- actuation type:
- Push-in || Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 38.1 mm / 1.5 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 25 mm / 20 4 AWG
- fine stranded conductor with ferrule push in termination:
- 6 16 mm / 10 6 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 16 mm / 20 6 AWG
- fire load:
- 0.386 MJ
- flammability class per ul94:
- V0
- height:
- 69.4 mm / 2.732 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 16 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 65 A
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.5 16 mm / 20 6 AWG
- solid conductor push in termination:
- 6 16 mm / 14 6 AWG
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 24.932 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Front-entry wiring
