Description

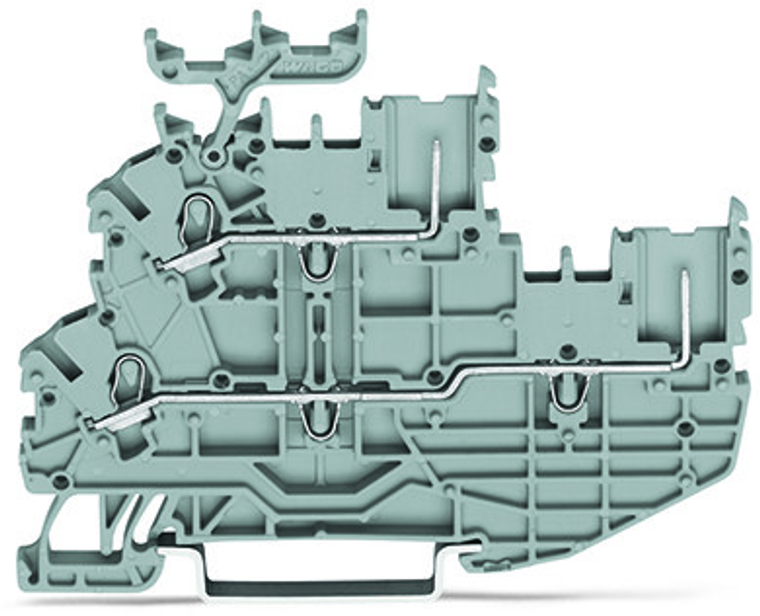

1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; L/L; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMPp>
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 13.5 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group C): 300 V
- Rated current UL (Use Group C): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group C): 300 V
- Rated current CSA (Use Group C): 10 A
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 1 mm
- Solid conductor: 0.14 1.5 mm / 24 16 AWG
- Solid conductor, push-in termination: 0.5 1.5 mm / 20 16 AWG
- Fine-stranded conductor: 0.14 1.5 mm / 24 16 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 0.75 mm / 20 18 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.5 0.75 mm / 20 18 AWG
- Strip length: 9 11 mm / 0.35 0.43 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 2
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
Geometrical Data
- Width: 3.5 mm / 0.138 inch
- Height from upper-edge of DIN-35 rail: 61.4 mm / 2.417 inch
- Depth: 80.1 mm / 3.154 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/L
- Marking level: Side marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.198 MJ
- Weight: 8.700 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821049579
- Customs Tariff No.: 85366990990
The WAGO 2020 X-COM S-Mini series feed-through terminal block is a double-deck component with marker carriers and side marking slots, marked "L/L." It is gray, features two feed-through poles, and accommodates two push-in and two plug-in pin connections for a total of four wires. It supports a nominal cross-section of 1mm² and is suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. The terminal block is rated for a current of 13.5A and utilizes Push-in CAGE CLAMP spring connections along with plug-in pin connections. It is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 and has a width of 3.5mm, equivalent to model 20202231.
