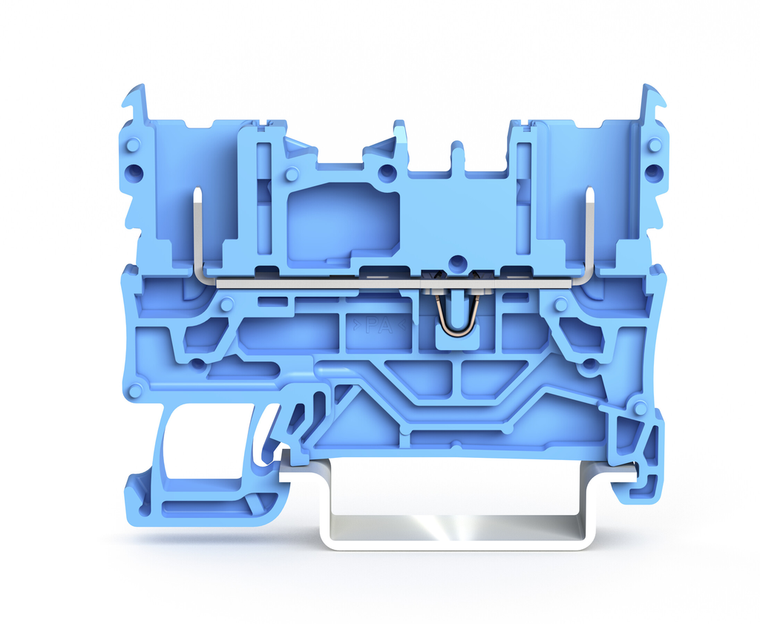

WAGO 2022-1604

(No reviews yet) Write a Review

Write a Review

WAGO 2022-1604

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2022-1604

UPC:

MPN:

Condition:

New

approvals per:

UL 1059

color:

Blue

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

32.5 mm / 1.28 inch

design:

Horizontal type

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

52 mm / 2.047 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

690 V

number of levels:

1

packaging type:

Box

rated current:

24 A

rated current csa use group c:

20 A

rated current ul use group b:

20 A

rated current ul use group c:

20 A

rated surge voltage iii 3:

6 kV

rated voltage csa use group c:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

total number of potentials:

1

weight:

5.490 g

width:

5.2 mm / 0.205 inch
