Description

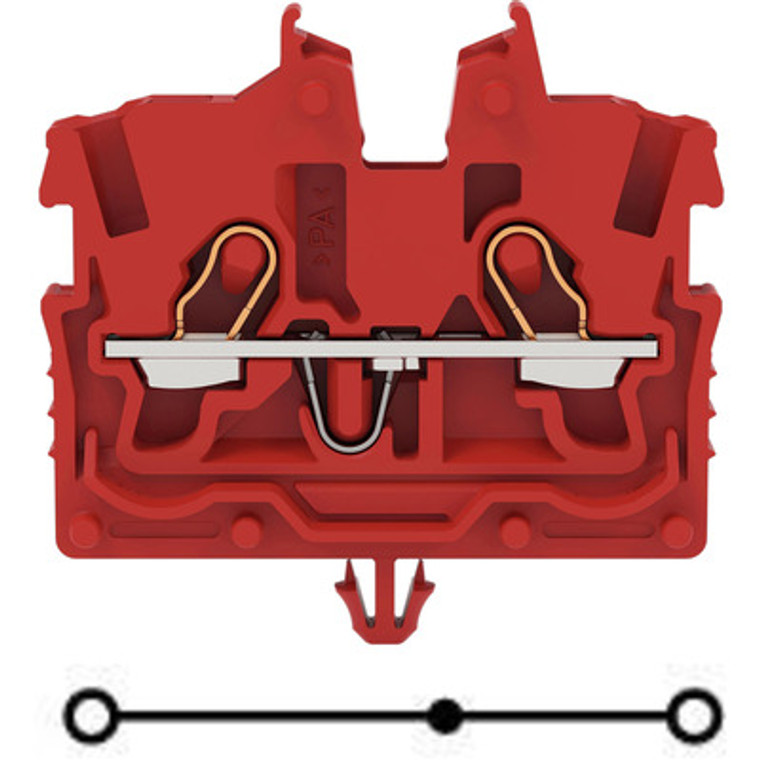

2-conductor miniature through tb with operating slots 1 mm², red.
View AllClose
The WAGO 2050 TOPJOB S series is a red feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with snap-in mounting foot, side and center marking slots, and a test port. It accommodates one feed-through pole with two push-in wire connections (1+1) and supports a nominal cross-section of 1mm² for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. The terminal block is rated for currents of 13.5A and 17.5A, utilizes Push-in CAGE CLAMP spring connections, and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting with a width of 3.5mm, equivalent to model 2050313.
