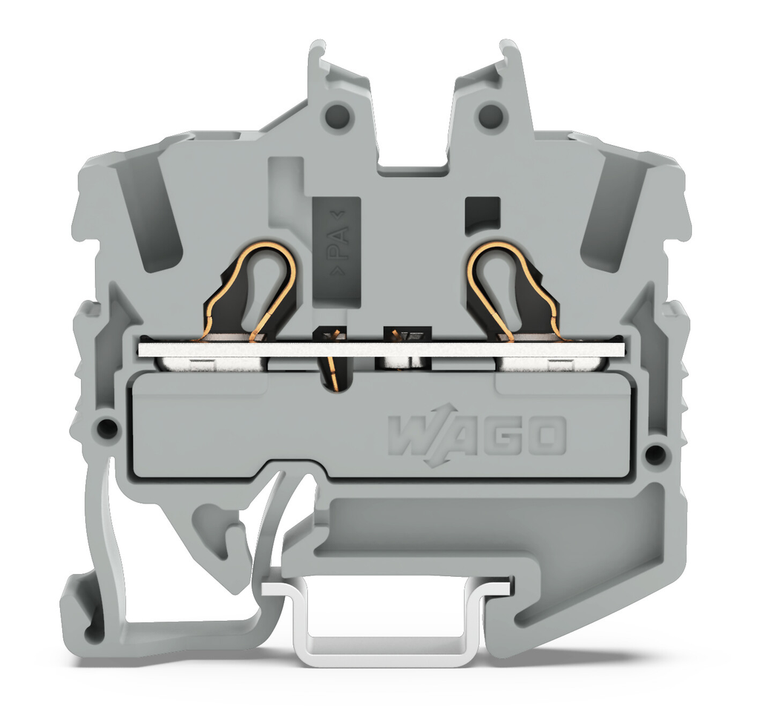

WAGO 2052-1201 2-conductor miniature through tb with operating slots 2.5 mm², gray
2-conductor miniature through terminal block; with operating slots; 2.5 mm²; with test port; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP; 2,50 mm²; gray.
The WAGO 2052 TOPJOB S series is a gray, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots. It accommodates one feed-through pole and two wires using push-in connections, suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG, with a nominal cross-section of 2.5mm². The terminal block supports rated currents of 24A and 32A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-15 rail with a width of 5.2mm. It is equivalent to model 20521201 and includes a test port.
- actuation type:
- Push-in || Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 30.8 mm / 1.213 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fire load:
- 0.090 MJ
- flammability class per ul94:
- V0
- height:
- 36.5 mm / 1.437 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-15 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- rated current:
- 24 A
- rated current 2:
- 32 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 1 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 4.156 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
