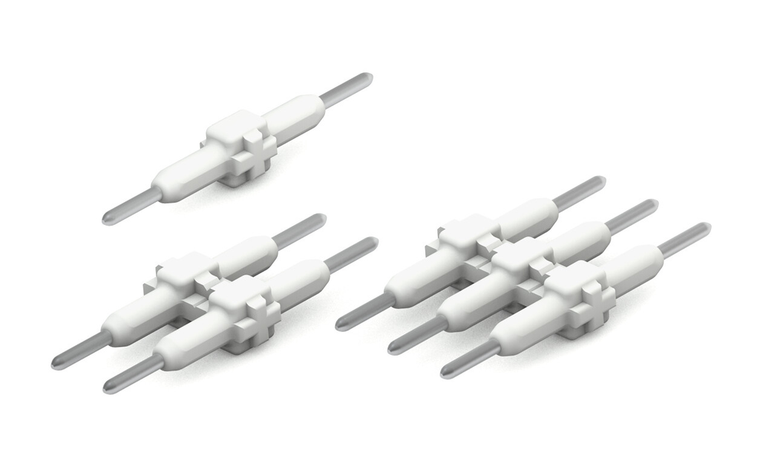

WAGO 2059-902 Board-to-Board Link; 2-Pole; 3 mm Pin Spacing; 15.3 mm Length; White
Wago
$0.51
Board-to-Board Link; Pin spacing 3 mm; 2-pole; Length: 15.3 mm; white.
The WAGO component equivalent to 2059902 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and communication within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- Color:
- White
- contact material:
- Copper alloy
- contact plating:
- Silver-plated
- country of origin sales organisation germany:
- CN
- depth:
- 15.3 mm / 0.602 inch
- fire load:
- 0.001 MJ
- flammability class per ul94:
- V0
- height:
- 2.5 mm / 0.098 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating cycles max:
- 10
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- number of mating cycles:
- Max. 10 connections/disconnections
- packaging type:
- Box
- pin spacing:
- 3 mm / 0.118 inch
- pole no:
- 2
- rated current:
- 0.125
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- ratings per:
- IEC/EN 60664-1
- suitable:
- For SMD PCB terminal blocks (2059 Series)
- weight:
- 0.127 g
- width:
- 5.7 mm / 0.224 inch
