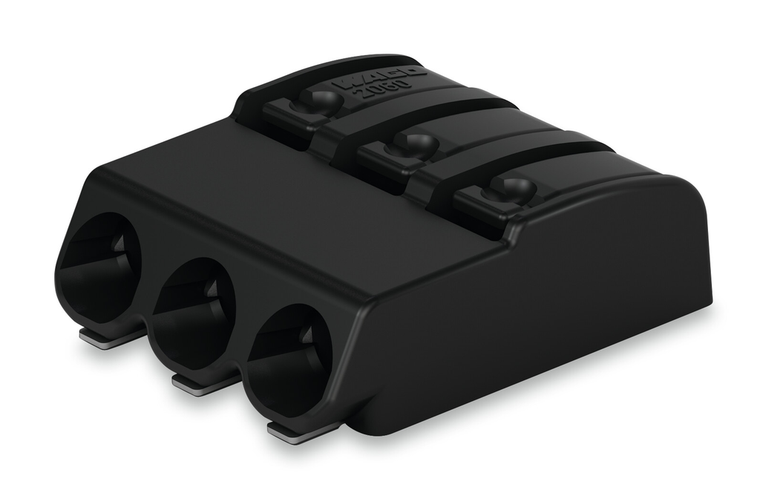

WAGO 2060-473/998-404 Pack of 750

(No reviews yet) Write a Review

Write a Review

WAGO 2060-473/998-404 Pack of 750

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2060-473/998-404

UPC:

MPN:

Condition:

New

actuation type:

Push-button

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Black

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

contact material:

Copper alloy

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

13.1 mm / 0.516 inch

fine stranded conductor:

0.2 0.75 mm / 24 18 AWG

fine stranded conductor with insulated ferrule:

0.25 0.34 mm

fine stranded conductor with uninsulated ferrule:

0.25 0.34 mm

fire load:

0.011 MJ

flammability class per ul94:

V0

height:

4.5 mm / 0.177 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

63 V

note:

Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

SMD

pin spacing:

4 mm / 0.157 inch

pole no:

3

rated current:

0.375

rated current ul 1977:

0.375

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul 1977:

320 V

ratings per:

IEC/EN 60664-1

recommendation:

Recommendation for stencil:Material thickness: 150 m: Pattern layout identical to solder pad layout

reel diameter of tape and reel packaging:

330 mm

solder pin arrangement:

Over the entire terminal strip (in-line)

solid conductor:

0.2 0.75 mm / 24 18 AWG

strip length:

7 9 mm / 0.28 0.35 inch

tape width:

24 mm

weight:

0.769 g

width:

11.9 mm / 0.469 inch
