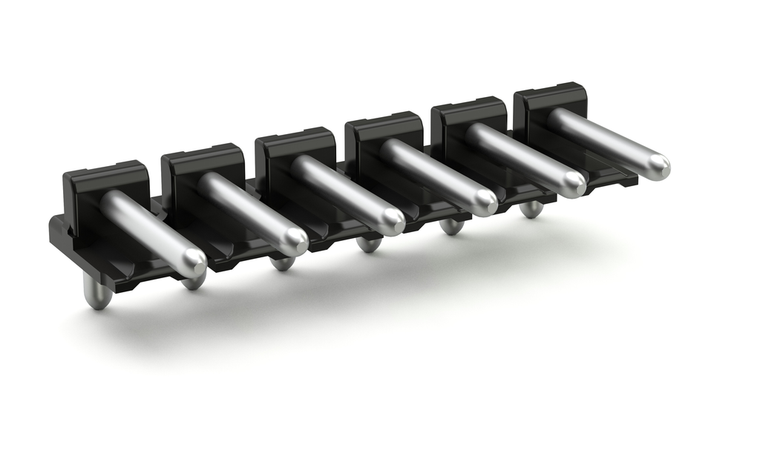

WAGO 2092-1727/200-000 picoMAX® 5.0 7-Pole Solder Pin Header, 5.00mm Pitch, Angled, Black, Pack of 300
Wago
$459.00
THR male header; 1.4 mm solder pin; angled; Pin spacing 5 mm; 7-pole; black.
The WAGO component equivalent to 20921727200000 is a specific part or product within the WAGO catalog, likely identified by its unique part number. This component is used in various applications, possibly in electrical or automation systems, and is recognized for its compatibility and functionality within WAGO's range of products. The exact specifications and use cases would depend on the detailed description provided by WAGO for this particular part number.
- Color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- CN
- depth:
- 12.3 mm / 0.484 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 6.4 mm / 0.252 inch
- height from the surface:
- 4 mm / 0.157 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 5 mm / 0.197 inch
- plated through hole diameter thr:
- 1.6 (+0.1) mm
- pole no:
- 7
- rated current:
- 16 A
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX« Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ens
- solder pin diameter:
- 1.4 mm
- solder pin length:
- 2.4 mm
- weight:
- 1.830 g
- width:
- 38.2 mm / 1.504 inch
