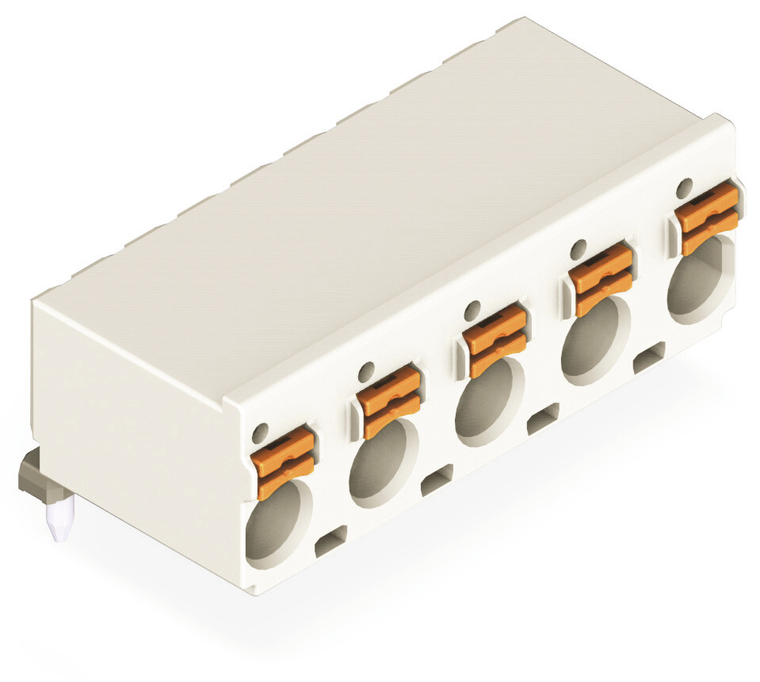

WAGO 2092-3375/200-000 1-conductor THR female header, 1.4 mm Ø solder pin angled, light gray, 100 pcs
Wago
$4.30
1-conductor THR female header 1.4 mm solder pin angled; light gray, 100 pcs..
The WAGO component equivalent to 20923375200000 is a specific part or product within the WAGO catalog, likely identified by its unique part number. This component is used in various applications, potentially in electrical or automation systems, and is recognized for its compatibility and functionality within those systems. The exact specifications and use cases would depend on the detailed product description provided by WAGO.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 16.2 mm / 0.638 inch
- fine stranded conductor:
- 0.2 2.5 mm / 24 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.012 MJ
- flammability class per ul94:
- V0
- height:
- 13.4 mm / 0.528 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 7.5 mm / 0.295 inch
- plated through hole diameter thr:
- 1.6 (+0.1) mm
- pole no:
- 5
- rated current:
- 16 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1.4 mm
- solder pin length:
- 2.4 mm
- solid conductor:
- 0.2 2.5 mm / 24 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 7.371 g
- width:
- 35 mm / 1.378 inch
