Wago

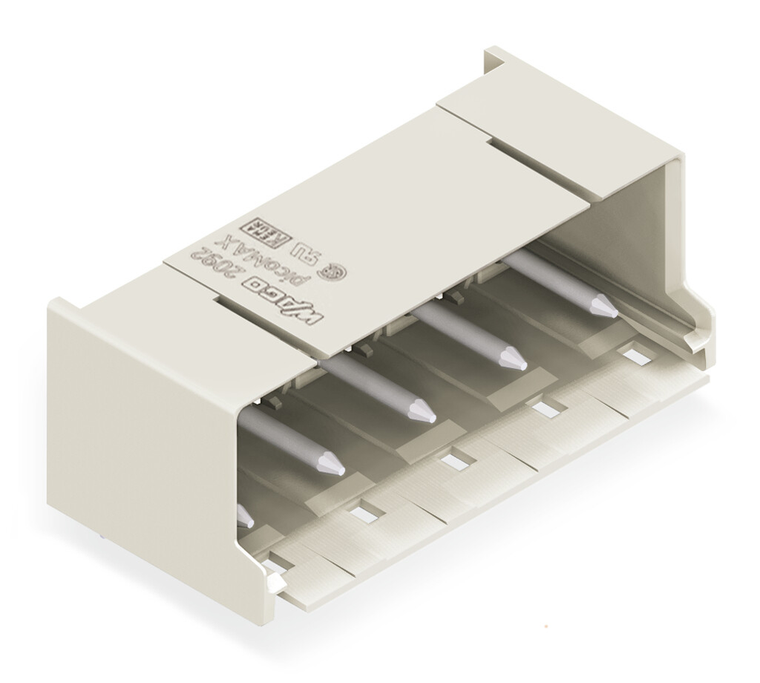

WAGO 2092-3424/200-000

SKU:

2092-3424/200-000

UPC:

MPN:

2092-3424/200-000

Condition:

New

approvals per:

UL 1059

color:

Light gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

19.5 mm / 0.768 inch

fire load:

0.067 MJ

flammability class per ul94:

V0

height:

16.8 mm / 0.661 inch

height from the surface:

14.4 mm / 0.567 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Locking latch

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

400 V

packaging type:

Box

pcb contact:

THR

pin spacing:

7.5 mm / 0.295 inch

plated through hole diameter thr:

1.6 (+0.1) mm

pole no:

4

rated current:

16 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage iii 2:

630 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

solder pin diameter:

1.4 mm

solder pin length:

2.4 mm

weight:

3.060 g

width:

29.7 mm / 1.169 inch
