Wago 2106-5301

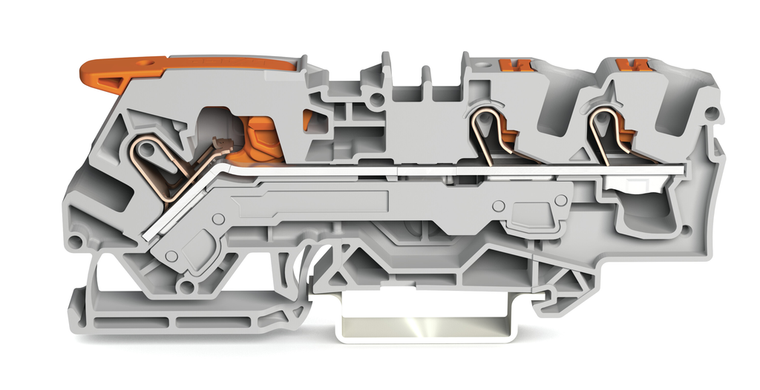

WAGO 2106-5301 3-Conductor Through Terminal Block with Lever and Push-Button, 6 mm², 41 A, Gray

Wago
SKU:
2106-5301
Availability:
Factory stock
$6.21
Condition:
New
Current Stock:
Description
3-conductor through terminal blockwith lever and push-button 6 mm, gray

Electrical Data
  • Rated voltage (III / 3): 800 V
  • Rated impulse voltage (III / 3): 8 kV
  • Rated current: 41 A
  • Rated current (2): 55 A
  • Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
  • Connection technology: Push-in CAGE CLAMP<sup></sup>
  • Actuation type: Lever
  • Actuation type 2: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross section: 6 mm
  • Solid conductor: 0.5 10 mm / 20 8 AWG
  • Solid conductor, push-in termination: 1 10 mm / 14 8 AWG
  • Fine-stranded conductor: 0.5 10 mm / 20 8 AWG
  • Fine-stranded conductor with ferrule with plastic collar: 2.5 6 mm / 16 10 AWG
  • Fine-stranded conductor with ferrule, push-in termination, from: 2.5 6 mm / 16 10 AWG
  • Strip length: 13 15 mm / 0.51 0.59 inch
  • Total number of connection points: 3
  • Total number of potentials: 1
  • Number of levels: 1
  • Type of wiring: Front-entry wiring
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
  • Number of jumper slots: 2
Geometrical Data
  • Width: 7.5 mm / 0.295 inch
  • Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
  • Depth: 90.8 mm / 3.575 inch
Mechanical Data
  • Design: horizontal
  • Type of mounting: DIN-35 rail
  • Marking level: Center/side marking
Material Data
  • Color: gray
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.000 MJ
  • Weight: 17.465 g
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4055143742481
  • Customs Tariff No.: 85369010000
.

The WAGO 2106 TOPJOB S series feed-through terminal block is a gray, single-deck unit with a lever, button, and side/lateral and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with three wires (one push-in and two push-in connections) for a nominal cross-section of 6mm², supporting wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block is rated for currents of 41A to 55A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 and has a width of 7.5mm, equivalent to model 21065301.

Additional Information
actuation type:
Push-in || Lever
actuation type 2:
Push-in || Push-button || Operating tool
approvals per:
UL 1059
color:
Gray
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
32.9 mm / 1.295 inch
design:
Horizontal type
fine stranded conductor:
0.5 10 mm / 20 8 AWG
fine stranded conductor with ferrule push in termination:
2.5 6 mm / 16 10 AWG
fine stranded conductor with insulated ferrule:
0.5 6 mm / 20 10 AWG
fire load:
0.012 MJ
flammability class per ul94:
V0
height:
90.8 mm / 3.575 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
6 mm
nominal voltage iii 3:
800 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
rated current:
41 A
rated current 2:
55 A
rated current csa use group b:
45 A
rated current csa use group c:
45 A
rated current ex e ii:
41 A
rated current ex e ii with jumper:
33 A
rated current ul use group b:
50 A
rated current ul use group c:
50 A
rated current ul use group d:
0.208333333333333
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
600 V
rated voltage csa use group c:
600 V
rated voltage en ex e ii:
550 V
rated voltage ul use group b:
600 V
rated voltage ul use group c:
600 V
rated voltage ul use group d:
600 V
ratings per:
ATEX: PTB 18 ATEX 1011 U / IECEx: PTB 18.0018U (Ex eb IIC Gb)
solid conductor:
0.5 10 mm / 20 8 AWG
solid conductor push in termination:
1 10 mm / 14 8 AWG
strip length:
13 15 mm / 0.51 0.59 inch
weight:
17.465 g
width:
7.5 mm / 0.295 inch
wiring direction:
Front-entry wiring
