Wago

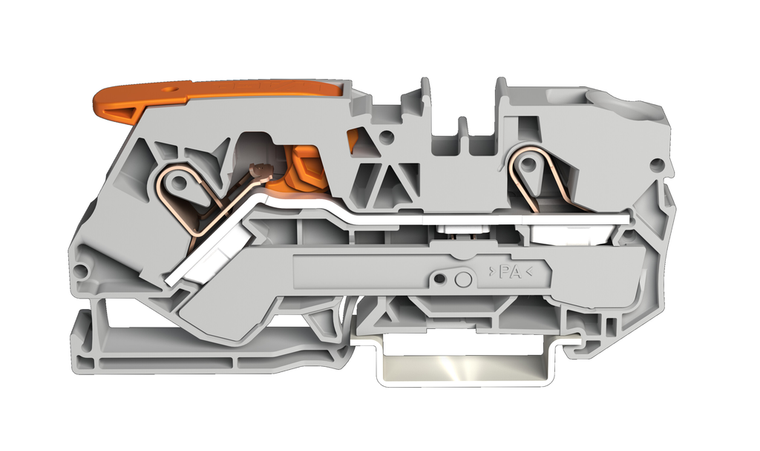

WAGO 2110-1201

SKU:

2110-1201

UPC:

MPN:

2110-1201

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

C22.2 No 158

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

36.9 mm / 1.453 inch

design:

Horizontal type

fine stranded conductor:

0.5 16 mm / 20 6 AWG

fine stranded conductor with ferrule push in termination:

4 10 mm / 12 8 AWG

fine stranded conductor with insulated ferrule:

0.5 10 mm / 20 8 AWG

fire load:

0.029 MJ

flammability class per ul94:

V0

height:

89 mm / 3.504 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

10 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

57 A

rated current 2:

74 A

rated current csa use group b:

65 A

rated current csa use group c:

65 A

rated current ex e ii:

57 A

rated current ex e ii with jumper:

50 A

rated current ul use group b:

65 A

rated current ul use group c:

65 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

550 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

ATEX: PTB 19 ATEX 1017 U / IECEx: PTB 19.0047U (Ex eb IIC Gb)

solid conductor:

0.5 16 mm / 20 6 AWG

solid conductor push in termination:

4 16 mm / 14 6 AWG

strip length:

17 19 mm / 0.67 0.75 inch

weight:

25.498 g

width:

10 mm / 0.394 inch

wiring direction:

Front-entry wiring
