WAGO 2110-1207 Terminal Block, 2-Position, 20-6 AWG, Push-In CAGE CLAMP, 57A
Wago
$14.66
2-conductor ground terminal block; with lever and Push-in CAGE CLAMP; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 10,00 mm²; green-yellow.

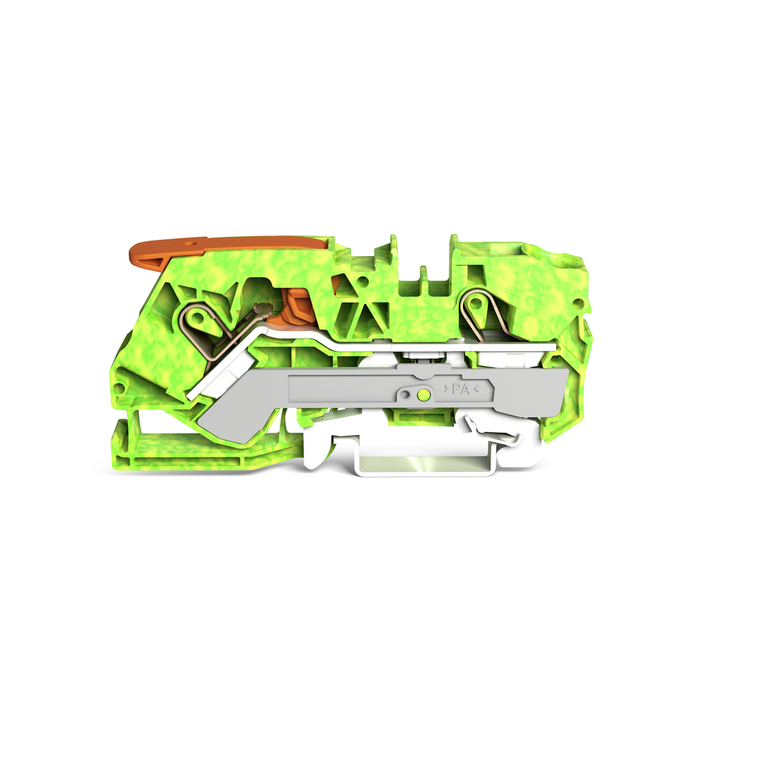

The WAGO 2110 TOPJOB S series ground/earthing terminal block features a single deck with a lever on one side, side and center marking slots, and a test port. It is green-yellow in color and designed for one grounding/protective-earth connection with two push-in wire slots (1+1 configuration). It supports a nominal cross-section of 10mm² and accommodates wire sizes from 0.5mm² to 16mm² or #20AWG to #6AWG. The terminal block uses Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 10mm width, equivalent to model 21101207.
- actuation type:
- Push-in || Lever
- actuation type 2:
- Push-in || Operating tool
- Color:
- Green-Yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 36.9 mm / 1.453 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 16 mm / 20 6 AWG
- fine stranded conductor with ferrule push in termination:
- 4 10 mm / 12 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 10 mm / 20 8 AWG
- fire load:
- 0.029 MJ
- flammability class per ul94:
- V0
- height:
- 89 mm / 3.504 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 10 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.5 16 mm / 20 6 AWG
- solid conductor push in termination:
- 4 16 mm / 14 6 AWG
- strip length:
- 17 19 mm / 0.67 0.75 inch
- weight:
- 37.461 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
