2-conductor ground terminal block16 mm, green-yellow
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Lever
- Actuation type 2: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 16 mm
- Solid conductor: 0.5 16 mm / 20 6 AWG
- Solid conductor, push-in termination: 2.5 16 mm / 14 6 AWG
- Fine-stranded conductor: 0.5 25 mm / 20 4 AWG
- Fine-stranded conductor with ferrule with plastic collar: 6 16 mm / 10 6 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 6 16 mm / 10 6 AWG
- Strip length: 18 20 mm / 0.71 0.79 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height from upper-edge of DIN-35 rail: 36.9 mm / 1.453 inch
- Depth: 91.5 mm / 3.602 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.000 MJ
- Weight: 39.781 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143754446
- Customs Tariff No.: 85369010000

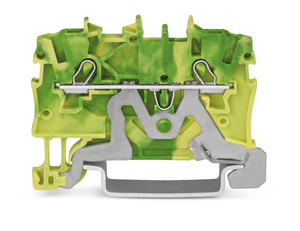

The WAGO 2116 TOPJOB S series ground/earthing terminal block features a single deck with a lever on one side, side and center marking slots, and a test port. It is green-yellow in color and designed for grounding/protective-earth applications, accommodating two wires with push-in connections. The terminal block supports a nominal cross-section of 16mm² for the main feed-through conductor and is compatible with wire sizes ranging from 0.5mm² to 25mm² or #20AWG to #4AWG. It utilizes Push-in CAGE CLAMP spring connections and mounts on a DIN-35 rail, with a width of 12mm, equivalent to model 21161207.
- actuation type:
- Push-in || Lever
- actuation type 2:
- Push-in || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 36.9 mm / 1.453 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 25 mm / 20 4 AWG
- fine stranded conductor with ferrule push in termination:
- 6 16 mm / 10 6 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 16 mm / 20 6 AWG
- fire load:
- 0.037 MJ
- flammability class per ul94:
- V0
- height:
- 91.5 mm / 3.602 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 16 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- 15 mm high DIN-35 rails shall be used for a current load higher than 76 A!
- solid conductor:
- 0.5 16 mm / 20 6 AWG
- solid conductor push in termination:
- 2.5 16 mm / 14 6 AWG
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 39.781 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Front-entry wiring
