Wago

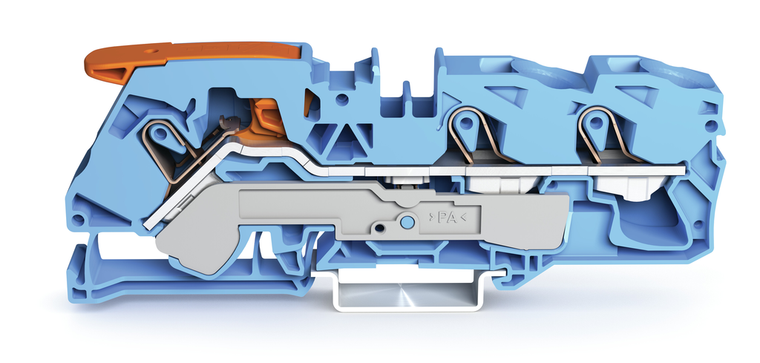

WAGO 2116-1304

SKU:

2116-1304

UPC:

MPN:

2116-1304

Condition:

New

actuation type:

Push-in || Lever

actuation type 2:

Push-in || Operating tool

approvals per:

UL 1059

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

36.9 mm / 1.453 inch

design:

Horizontal type

fine stranded conductor:

0.5 25 mm / 20 4 AWG

fine stranded conductor with ferrule push in termination:

6 16 mm / 10 6 AWG

fine stranded conductor with insulated ferrule:

0.5 16 mm / 20 6 AWG

fire load:

0.613 MJ

flammability class per ul94:

V0

height:

113.5 mm / 4.469 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

16 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

76 A

rated current 2:

90 A

rated current csa use group b:

85 A

rated current csa use group c:

85 A

rated current ex e ii:

76 A

rated current ex e ii with jumper:

65 A

rated current ul use group b:

85 A

rated current ul use group c:

85 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

550 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

ATEX: PTB 18 ATEX 1012 U / IECEx: PTB 18.0019U (Ex eb IIC Gb)

safety information 1:

15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

solid conductor:

0.5 16 mm / 20 6 AWG

solid conductor push in termination:

2.5 16 mm / 14 6 AWG

strip length:

18 20 mm / 0.71 0.79 inch

weight:

40.368 g

width:

12 mm / 0.472 inch

wiring direction:

Front-entry wiring
