Wago 215-511 Pack of 50

WAGO 215-511 Pack of 50 Banana Plugs for 4mm Sockets

Wago
SKU:
215-511
Availability:
Factory stock
$140.00
Condition:
New
Current Stock:
Description

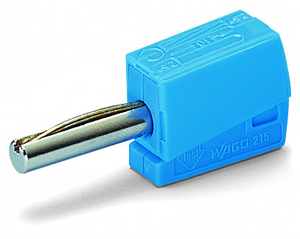

Description Banana plug; for socket 4 mm
Remarks

Item properties

Miscellaneous

Name Value Unit
Total number of connection points  1
Total number of potentials  1
Color  yellow
Rated current [A]  20  A
Test voltage [V]  42  V
Connection technology  CAGE CLAMP
Number of connection points connector  1
Solid conductor  0.08 2.5 mm / 28 14 AWG
Fine-stranded conductor  0.08 2.5 mm / 28 14 AWG
Strip length  9 11 mm / 0.35 0.43 Inch
Weight [g]  3.85  g
Width  8 mm / 0.315 Inch
Height  15 mm / 0.591 Inch
Depth  40 mm / 1.575 Inch
.

The WAGO 215 series banana plug is designed for 4mm diameter sockets and is a 1-pole (1P) connector suitable for 2.5mm2 wires. It has a rated current of 20A and comes in yellow color. The plug features CAGE CLAMP spring connections and is mounted using a plug-in method with an 8mm width. It is equivalent to the model 215511.

Additional Information
Color:
Yellow
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth:
40 mm / 1.575 inch
fine stranded conductor:
0.08 2.5 mm / 28 14 AWG
fire load:
0.000 MJ
height:
15 mm / 0.591 inch
main product function:
Testing accessories
packaging type:
Box
rated current:
20 A
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
9 11 mm / 0.35 0.43 inch
test voltage:
42 V
total number of connection points:
1
total number of potentials:
1
weight:
3.850 g
width:
8 mm / 0.315 inch
