Description

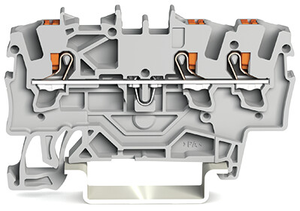

3-conductor through terminal block, with push-button 1.5 mm², dark gray-yellow.
View AllClose
The WAGO 2201 TOPJOB S series feed-through terminal block is a dark gray-yellow, single-deck component designed for Ex e II applications. It features side and center marking slots, a test port, and accommodates one feed-through pole with three wires (one push-in and two push-in connections). It supports a nominal cross-section of 1.5mm² and is compatible with wire sizes ranging from 0.25mm² to 2.5mm² (#22AWG to #14AWG). The terminal block is rated for currents of 18A and 24A and utilizes Push-in CAGE CLAMP spring connections. It mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 4.2mm, equivalent to part number 22011301000053.
