WAGO 2202-1611
Wago
$10.70
2-conductor fuse terminal block with pivoting fuse holder and end plate; gray, 50 pcs..

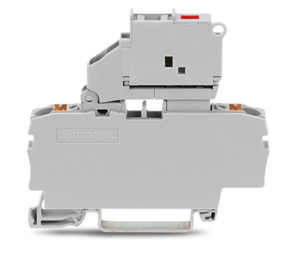

The WAGO 2202 TOPJOB S series is a gray feed-through terminal block featuring a single deck with a fused-disconnect lever type for 5x20mm fuses, a button, and a built-in end plate that closes on both sides. It includes side and center marking slots and accommodates one feed-through pole for two wires using push-in connections. The terminal block supports a nominal cross-section of 2.5mm² and is suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 6.3A and utilizes Push-in CAGE CLAMP spring connections, designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5, and has a width of 6.2mm. This model is equivalent to 22021611.
- actuation type:
- Push-in || Push-button || Operating tool
- approvals per:
- UL 1059
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 57.6 mm / 2.268 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.131 MJ
- flammability class per ul94:
- V0
- height:
- 66.1 mm / 2.602 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- operation status indicator:
- Without
- packaging type:
- Box
- rated current:
- 6.3 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 250 V
- rated voltage csa use group c:
- 250 V
- rated voltage csa use group d:
- 250 V
- rated voltage ul use group b:
- 250 V
- rated voltage ul use group c:
- 250 V
- rated voltage ul use group d:
- 250 V
- ratings note:
- Electrical ratings are given by the fuse.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 13.470 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
