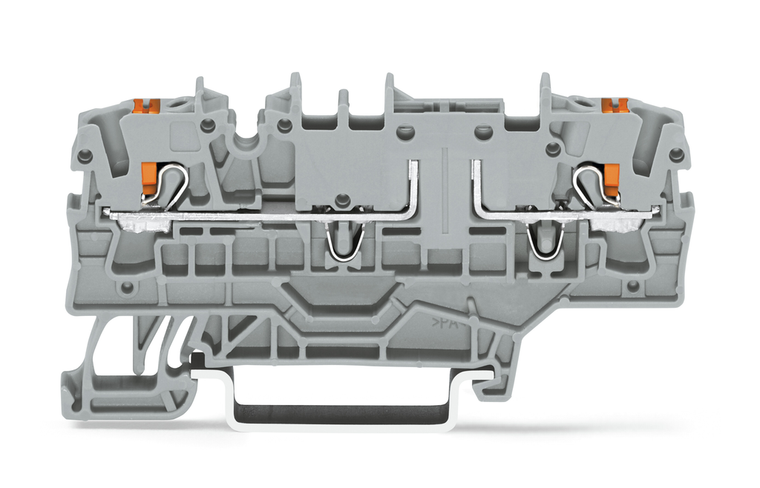

WAGO 2202-1961 2-conductor carrier terminal block with push-button and additional jumper position for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, gray
Wago
$7.18
TOPJOBS carrier terminal block with Push-buttons; rail mount; 2-conductor; 5.2 mm wide; gray.
The WAGO 2202 TOPJOB S series carrier feed-through terminal block is a gray, single-deck terminal block designed for one feed-through pole and two wires, each with a push-in connection. It features additional jumper positions, side and center marking slots, and supports a nominal cross-section of 2.5mm², accommodating wire sizes from 0.25mm² to 4mm² or #22AWG to #12AWG. Rated for a current of 16A, it utilizes Push-in CAGE CLAMP spring connections and is mounted on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5, and has a width of 5.2mm. This terminal block is equivalent to model 22021961.
- approvals per:
- UL 1059
- Color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 72.9 mm / 2.87 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 400 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 16 A
- rated current csa use group b:
- 15 A
- rated current csa use group c:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 7.881 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
