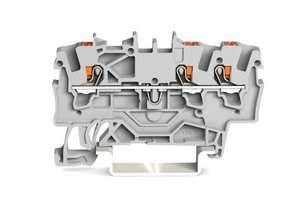

WAGO 2204-1301 3-conductor through terminal block; with push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 4,00 mm²; gray
TOPJOBS feedthrough terminal block with Push-buttons; rail mount; 3-conductor; 6.2 mm wide; gray.
The WAGO 2204 TOPJOB S series feed-through terminal block is a gray, single-deck unit with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates one feed-through pole with three wires (one push-in and two push-in connections). The terminal block supports a nominal cross-section of 4mm² and is compatible with wire sizes ranging from 0.5mm² to 6mm² (#20AWG to #10AWG). It has a rated current of 32A or 41A and utilizes Push-in CAGE CLAMP spring connections. The unit is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6.2mm, equivalent to model 22041301.
- actuation type:
- Push-in || Push-button || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 32.9 mm / 1.295 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.164 MJ
- flammability class per ul94:
- V0
- height:
- 65.5 mm / 2.579 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 32 A
- rated current 2:
- 41 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current ex e ii:
- 31 A
- rated current ex e ii with jumper:
- 30 A
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 600 V
- rated voltage csa use group c:
- 600 V
- rated voltage en ex e ii:
- 550 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 9.035 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
