Wago

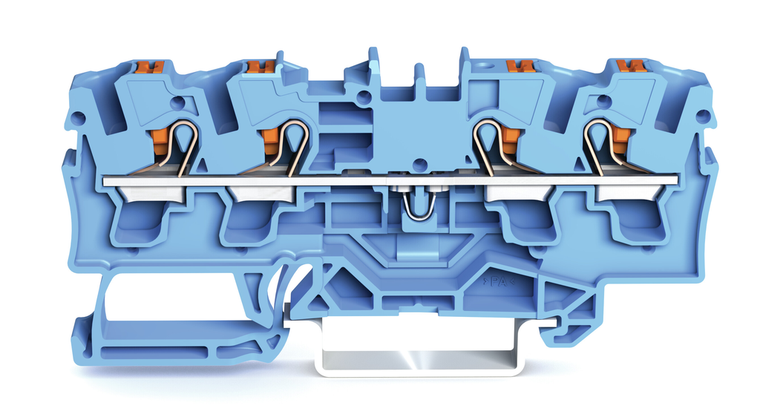

WAGO 2204-1404

SKU:

2204-1404

UPC:

MPN:

2204-1404

Condition:

New

actuation type:

Push-in || Push-button || Operating tool

approvals per:

C22.2 No 158

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.5 6 mm / 20 10 AWG

fine stranded conductor with ferrule push in termination:

1.5 4 mm / 18 12 AWG

fine stranded conductor with insulated ferrule:

0.5 4 mm / 20 12 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

78.7 mm / 3.098 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

4 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

32 A

rated current 2:

41 A

rated current csa use group b:

30 A

rated current csa use group c:

30 A

rated current ex e ii:

31 A

rated current ex e ii with jumper:

30 A

rated current ul use group b:

30 A

rated current ul use group c:

30 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

550 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.5 6 mm / 20 10 AWG

solid conductor push in termination:

1 6 mm / 14 10 AWG

strip length:

11 13 mm / 0.43 0.51 inch

weight:

11.294 g

width:

6.2 mm / 0.244 inch

wiring direction:

Front-entry wiring
