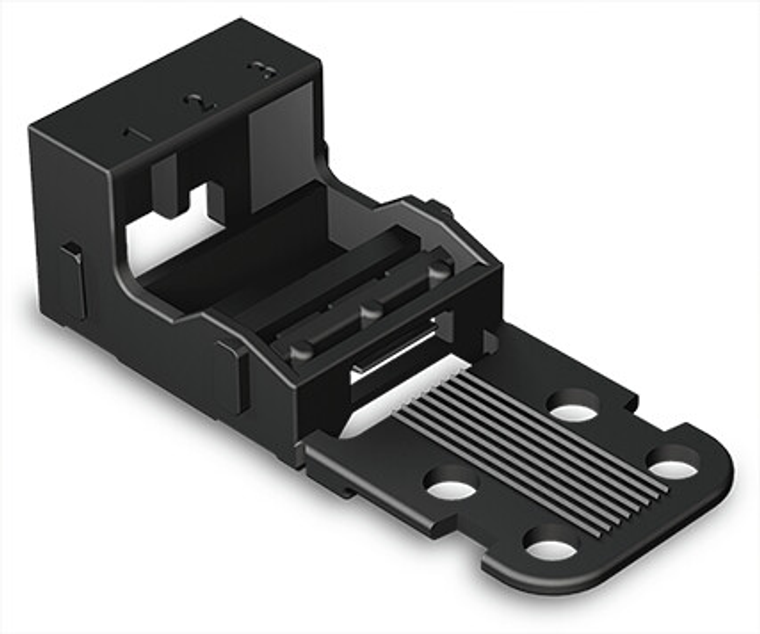

Mounting carrier; 221 series (24 - 12 AWG); 3-conductor; with snap-in mounting foot for horizontal mounting; black.
The mounting carrier for horizontal mounting with a snap-in mounting foot from WAGO's 221 series is designed for 4mm² conductors and comes in black. It is compatible with 3-conductor terminal blocks and is equivalent to the model number 221513000004.
- color:
- Black
- country of origin sales organisation germany:
- CN
- depth:
- 52.8 mm / 2.079 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 21.4 mm / 0.843 inch
- height from the surface:
- 16.9 mm / 0.665 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- With snap-in mounting foot for horizontal mounting
- packaging type:
- Box
- suitable:
- For 3-wire connectors (4 mm)
- weight:
- 3.580 g
- width:
- 23.7 mm / 0.933 inch
