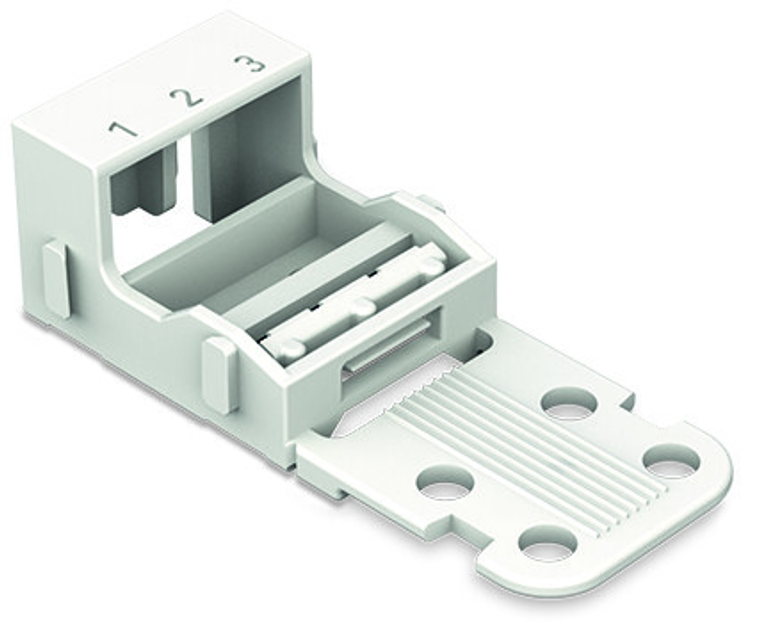

Wago 221-513 Mounting Carrier for 3-Conductor Terminal Blocks, 221 Series, 4mm², White, Pack of 10
Wago
$8.52
This Wago 221-513 mounting carrier provides a secure, repeatable installation method for 3-conductor 221 Series lever connectors in horizontal panel or DIN-rail style assemblies. It uses a snap-in mounting foot for quick mechanical fastening and is designed for 4 mm² (approx. 12 AWG) conductors, allowing organized routing of multi-conductor connections in control panels, junction boxes, and machinery wiring. The carrier is molded from UL 94 V0 polyamide (PA66) for high flame resistance and offers compact dimensions (approx. 23.7 × 52.8 × 21.4 mm) with a 16.9 mm height from the mounting surface, supporting dense layouts in space-constrained enclosures. It is optimized for use with WAGO 221 Series 3-conductor splicing connectors, providing consistent orientation, strain relief via fixed positioning, and a defined interface for labeling or inspection.
Documentation
- Technical Datasheet WAGO 221-513 Mounting Carrier
- `https://www.wago.com/global/wire-splicing-connectors/mounting-carrier/p/221-513`
- Installation Instructions WAGO 221 Series Mounting Carriers (incl. 221-513)
- `https://www.wago.com/global/installation-instructions/221-series-mounting-carrier-221-513`
- Product Family Catalog Page WAGO 221 Series Accessories and Mounting Carriers
- `https://www.wago.com/global/wire-splicing-connectors/221-series-accessories/p/221-513`
- CAD/3D Model Data WAGO 221-513 Mounting Carrier
- `https://www.wago.com/global/cad-data/221-513`
- color:
- White
- country of origin sales organisation germany:
- CN
- depth:
- 52.8 mm / 2.079 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 21.4 mm / 0.843 inch
- height from the surface:
- 16.9 mm / 0.665 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- With snap-in mounting foot for horizontal mounting
- packaging type:
- Box
- suitable:
- For 3-wire connectors (4 mm)
- weight:
- 3.580 g
- width:
- 23.7 mm / 0.933 inch
