Wago 221-522 Pack of 10

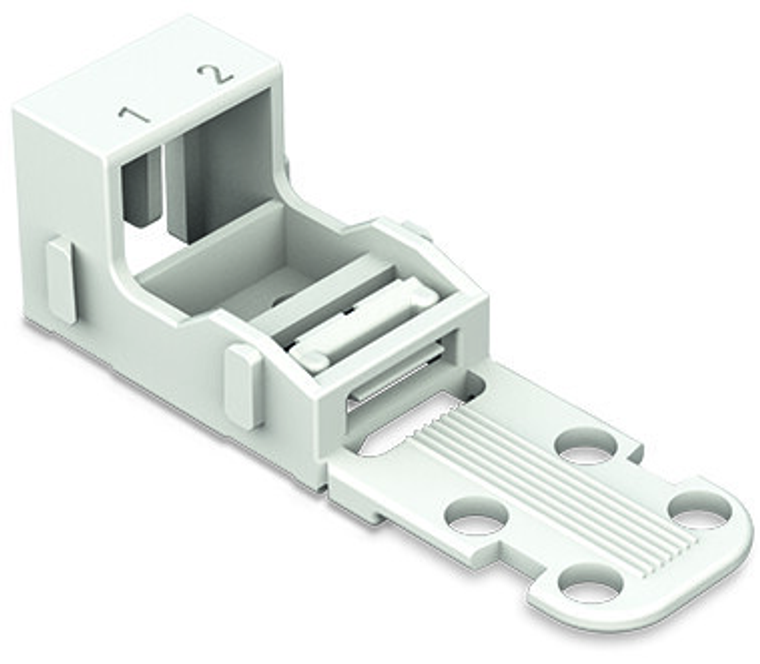

Wago 221-522 Mounting Carrier for 2-Conductor Terminal Blocks, 221 Series, 4mm², White, Pack of 10

Wago
SKU:
221-522
Availability:
Contact us to confirm availability and lead times.
$8.15
Condition:
New
Current Stock:
Description
This WAGO 221-522 mounting carrier is designed for vertical mounting of 2-conductor 221 Series splicing connectors on a DIN-35 rail, providing organized, front-entry wiring for copper or aluminum conductors up to 4 mm² / 12 AWG. It uses WAGO’s CAGE CLAMP technology with operating-tool actuation, supports solid and fine-stranded conductors from 0.08–2.5 mm² (28–12 AWG), and maintains a compact profile with a 5 mm width, 50 mm height, and 28 mm depth from the top of the DIN rail. The carrier is molded from PA66 (UL94 V0), rated to 24 A, 800 V (OVC III, pollution degree 3), and 8 kV surge, making it suitable for control panels, machinery, and building automation assemblies where standardized DIN-rail mounting and clear side marking are required. Documentation - Technical Datasheet – WAGO 221-522 Mounting Carrier - https://www.wago.com/global/wire-splicing-connectors/mounting-carrier/p/221-522 - Installation Instructions – WAGO 221 Series Mounting Carriers (including 221-522) - https://www.wago.com/global/installation-instructions/221-series-mounting-carriers/p/221-522 - Approvals and Certificates Overview – WAGO 221-522 - https://www.wago.com/global/technical-approval-data/221-522 - CAD/3D Data – WAGO 221-522 Mounting Carrier - https://www.wago.com/global/cad-data/221-522
Additional Information
actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28 mm / 1.102 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.093 MJ
flammability class per ul94:
V0
height:
50 mm / 1.969 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
800 V
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
8 kV
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
4.821 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
