Wago

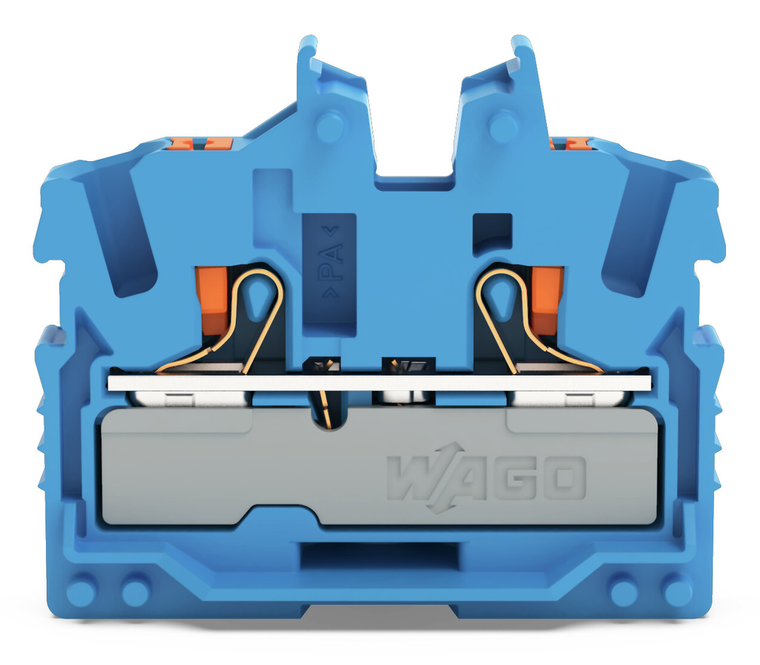

WAGO 2252-304

SKU:

2252-304

UPC:

MPN:

2252-304

Condition:

New

actuation type:

Push-in || Push-button || Operating tool

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP«

country of origin sales organisation germany:

DE

depth:

35.5 mm / 1.398 inch

design:

Horizontal type

fine stranded conductor:

0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG

fine stranded conductor with ferrule push in termination:

1 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG

fine stranded conductor with insulated ferrule:

1 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG

fire load:

0.093 MJ

flammability class per ul94:

V0

height from the surface:

30 mm / 1.181 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

Mounting flange

nominal cross section:

2.5 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

rated current:

24 A

rated current 2:

32 A

rated surge voltage iii 3:

8 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.25 ƒƒ‡ª 4 mm / 22 ƒƒ‡ª 12 AWG

solid conductor push in termination:

1 ƒƒ‡ª 4 mm / 18 ƒƒ‡ª 12 AWG

strip length:

10 ƒƒ‡ª 12 mm / 0.39 ƒƒ‡ª 0.47 inch

weight:

4.420 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
