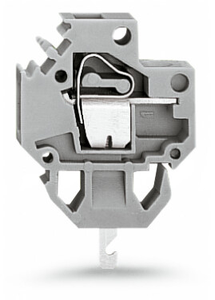

WAGO 226-112

(No reviews yet) Write a Review

Write a Review

×

WAGO 226-112

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

226-112

Condition:

New

actuation type:

Operating tool

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

connection technology:

CAGE CLAMP«

connection technology 2:

Wire-wrap pin

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

26 mm / 1.024 inch

fine stranded conductor:

0.08 ƒƒ‡ª 4 mm / 28 ƒƒ‡ª 12 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 2.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 ƒƒ‡ª 2.5 mm

fire load:

0.054 MJ

flammability class per ul94:

V0

height:

38.5 mm / 1.516 inch

height from the surface:

22 mm / 0.866 inch

housing sheet thickness:

2.5 ƒƒ‡ª 2.5 mm / 0.098 ƒƒ‡ª 0.098 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +105 C

material group:

I

mounting type:

Snap-in foot || Feed-through mounting

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of connection points:

1

number of connection points 2:

1

packaging type:

Bag

pin spacing:

6 mm / 0.236 inch

pole no:

1

rated current:

0.166666666666667

rated current csa use group b:

0.166666666666667

rated current csa use group c:

0.166666666666667

rated current csa use group d:

0.166666666666667

rated current ul use group b:

0.166666666666667

rated current ul use group c:

0.166666666666667

rated current ul use group d:

0.166666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

600 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

600 V

ratings note:

Wire-wrap pin

ratings per:

IEC/EN 60664-1

solid conductor:

0.08 ƒƒ‡ª 4 mm / 28 ƒƒ‡ª 12 AWG

strip length:

9 ƒƒ‡ª 10 mm / 0.35 ƒƒ‡ª 0.39 inch

weight:

3.404 g

width:

6 mm / 0.236 inch
