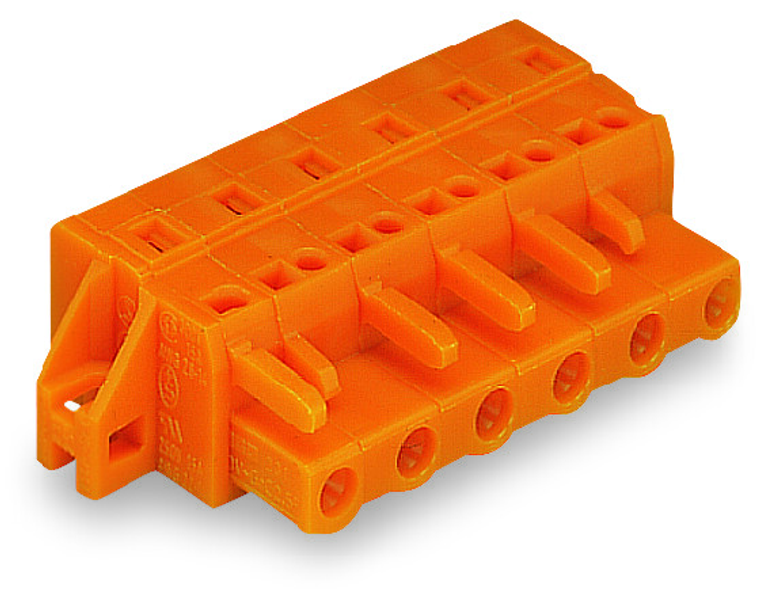

WAGO 231-704/031-000 1-conductor female plug; clamping collar; 2.5 mm²; Pin spacing 7.62 mm; 4-pole; 2,50 mm²; orange
1-conductor female connector; CAGE CLAMP; 2.5 mm²; Pin spacing 7.62 mm; 4-pole; clamping collar; 2,50 mm²; orange.
The WAGO component equivalent to 231704031000 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its high-quality construction, ease of use, and compatibility with a wide range of electrical devices and systems. It is commonly used in control panels, machinery, and other electrical installations where dependable connections are crucial.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 26.45 mm / 1.041 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.158 MJ
- flammability class per ul94:
- V0
- height:
- 14.3 mm / 0.563 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 4
- rated current:
- 16 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 9.048 g
- width:
- 42.74 mm / 1.683 inch
