WAGO 236-200 Pack of 100
Wago
$12.70

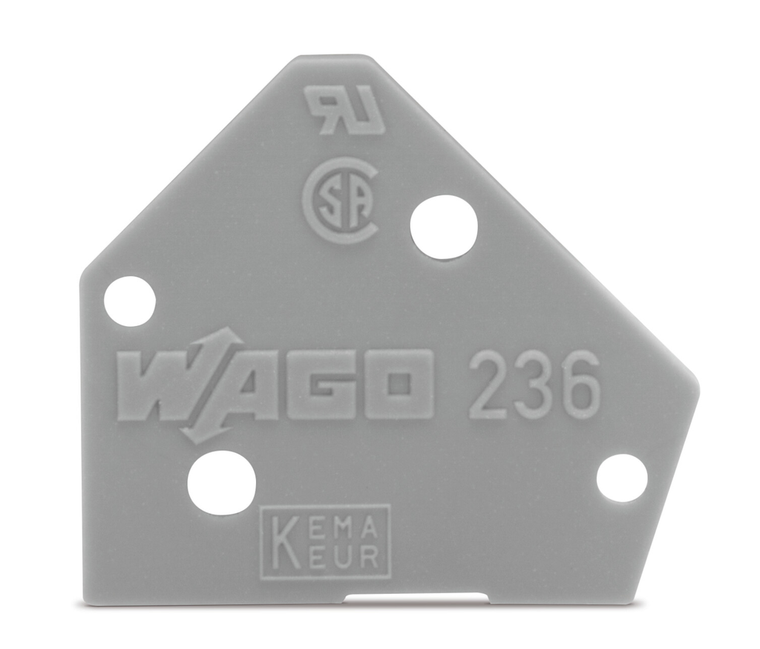

End plate; 1 mm thick; snap-fit type; dark gray.
The WAGO component equivalent to 236200 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is part of WAGO's extensive range of products known for their quality and durability in industrial and commercial electrical installations.
- actuation type:
- Operating tool || Push-button, both side
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.429 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 6 mm / 0.236 inch
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 6
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 16.840 g
- width:
- 50.1 mm / 1.972 inch
- wiring direction:
- Side-entry wiring
