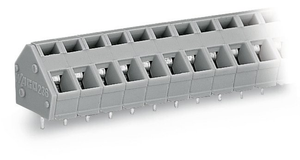

WAGO 236-408/332-009/999-950 PCB terminal block, 2.5 mm², 8-pole, 5/5.08 mm pin spacing, light gray
Wago
$8.11
PCB terminal block, 2.5 mm² Pin spacing 5/5.08 mm 8-pole, light gray.
The WAGO component equivalent to 236408332009999950 is a specific part or product within the WAGO range, known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products. It is designed to meet stringent standards and specifications, ensuring safety, efficiency, and ease of use in complex electrical systems.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 14 mm / 0.551 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.108 MJ
- flammability class per ul94:
- V0
- height:
- 18.5 mm / 0.728 inch
- height from the surface:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5/5.08 mm / 0.197/0.2 inch
- pole no:
- 8
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 176 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 5.5 mm
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 1.111 g
- width:
- 42.3 mm / 1.665 inch
