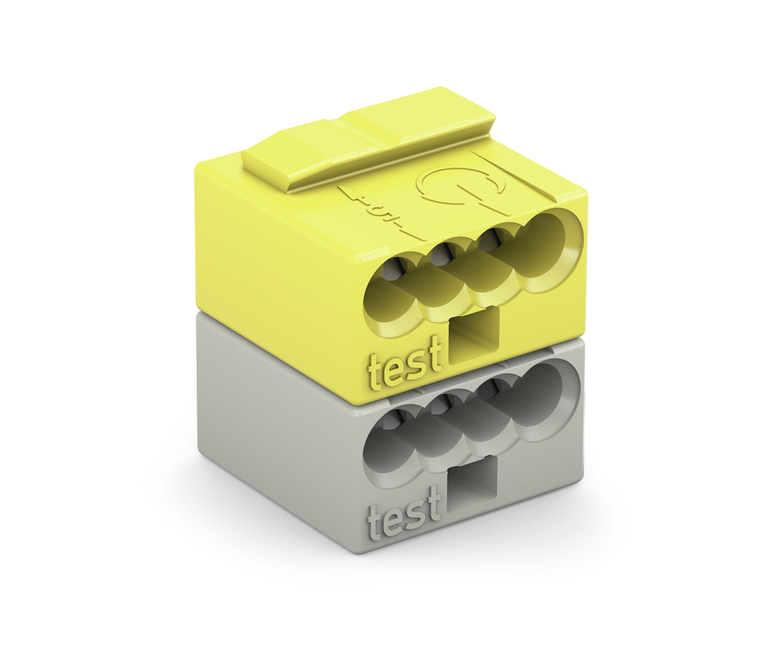

Connector; For EIB applications
- Compact, 4-conductor KNX/EIB connectors with PUSH WIRE<sup></sup> connection
- Push-in termination of solid conductors
- Four-conductor entries allow devices to be replaced without disrupting the KNX/EIB bus connection
The WAGO component is a versatile and reliable electrical connector used in various applications for connecting wires. It is known for its ease of use, safety, and efficiency, allowing for quick and secure connections without the need for tools. The component features a lever mechanism that ensures a strong and stable connection, making it ideal for both professional and DIY electrical projects. WAGO connectors are widely used in industrial, commercial, and residential settings due to their high quality and performance.
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray/yellow
- conductor diameter:
- 0.6 0.8 mm / 22 20 AWG
- conductor diameter 2:
- 1 mm / 18 AWG
- conductor diameter note:
- When using different conductor diameters
- conductor diameter note 2:
- When using identical conductor diameters
- connection technology:
- PUSH WIRE
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 10 mm / 0.394 inch
- fire load:
- 0.024 MJ
- flammability class per ul94:
- V0
- height:
- 11.5 mm / 0.453 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pole no:
- 2
- rated current:
- 0.25
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 100 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 22 20 AWG
- solid conductor 2:
- 18 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 1.517 g
- width:
- 10 mm / 0.394 inch
