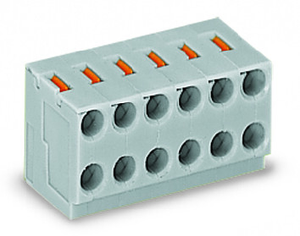

2-conductor female connector; push-button; PUSH WIRE; 0.8 mm.
The WAGO component equivalent to 252310 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is part of WAGO's extensive range of products known for their quality and innovation in the field of electrical engineering and automation.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- Gray
- conductor connection direction to pcb:
- 0
- conductor diameter:
- 0.4 0.8 mm / 26 20 AWG
- connection technology:
- PUSH WIRE
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 11.8 mm / 0.465 inch
- fire load:
- 0.094 MJ
- flammability class per ul94:
- V0
- height:
- 11 mm / 0.433 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating direction to the rail mount terminal block:
- 90
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 10
- rated current:
- 0.0833333333333333
- rated current ul use group b:
- 0.0833333333333333
- rated current ul use group d:
- 0.0833333333333333
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.14 0.5 mm / 26 20 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 4.513 g
- width:
- 35.0 mm / 1.378 inch
