Wago

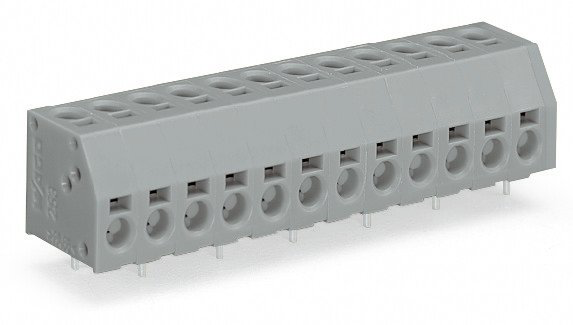

WAGO 253-110 Pack of 20

SKU:

253-110

UPC:

MPN:

253-110

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

0

conductor connection direction to pcb 2:

90

connection technology:

PUSH WIRE

connection technology 2:

PUSH WIRE

connection type 1:

PUSH WIRE connection

connection type 2:

PUSH WIRE connection

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CN

depth:

12.8 mm / 0.504 inch

drilled hole diameter with tolerance:

1.1 (+0.1) mm

fire load:

0.180 MJ

flammability class per ul94:

V0

height:

16.6 mm / 0.654 inch

height from the surface:

13 mm / 0.512 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

note strip length:

7 8 mm / 0.28 0.31 inch (for wiring on both sides)

note strip length 2:

7 8 mm / 0.28 0.31 inch (for wiring on both sides)

number of connection points:

1

number of connection points 2:

1

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

10

rated current:

17.5 A

rated current csa use group b:

0.333333333333333

rated current csa use group d:

0.333333333333333

rated current ul use group b:

0.333333333333333

rated current ul use group d:

0.333333333333333

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

0.5 x 0.8 mm

solder pin length:

3.6 mm

solid conductor:

0.5 1.5 mm / 20 16 AWG

solid conductor 2:

0.5 1.5 mm / 20 16 AWG

strip length:

8.5 9.5 mm / 0.33 0.37 inch

strip length 2:

8.5 9.5 mm / 0.33 0.37 inch

weight:

8.734 g

width:

52 mm / 2.047 inch
