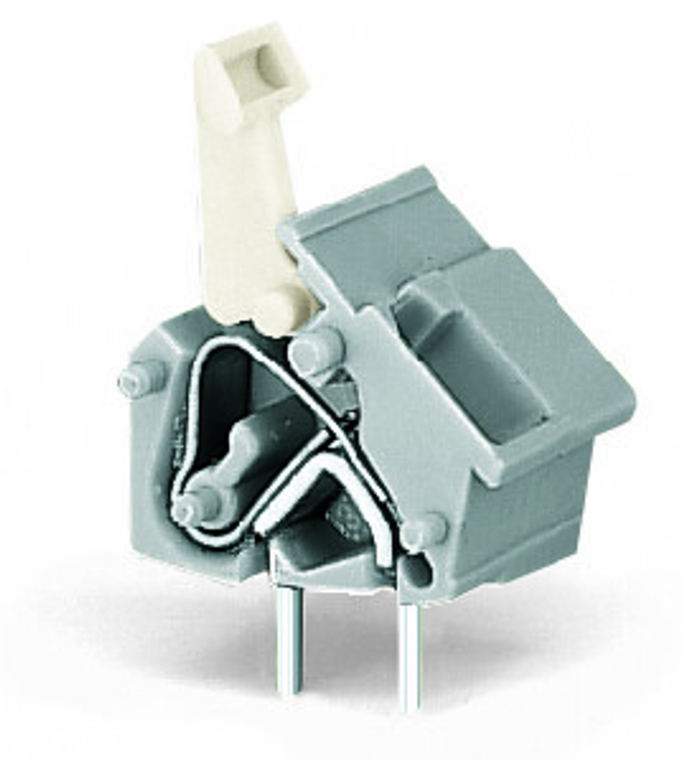

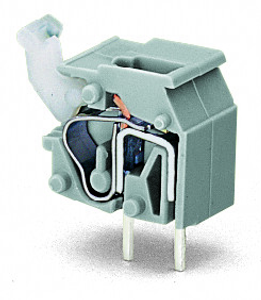

Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 10/10.16 mm; 1-pole; CAGE CLAMP; commoning option; 2,50 mm²; dark gray.
The WAGO component equivalent to 256762 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is designed to meet certain specifications and standards, ensuring compatibility and functionality within systems that require such a part. It is essential for users to identify the correct equivalent to ensure seamless integration and optimal performance in their projects or installations.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Dark gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 17.6 mm / 0.693 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.027 MJ
- flammability class per ul94:
- V0
- height:
- 22.2 mm / 0.874 inch
- height from the surface:
- 18.2 mm / 0.717 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10/10.16 mm / 0.394/0.4 inch
- pole no:
- 1
- rated current:
- 24 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 1.322 g
- width:
- 12.8 mm / 0.504 inch
