Wago

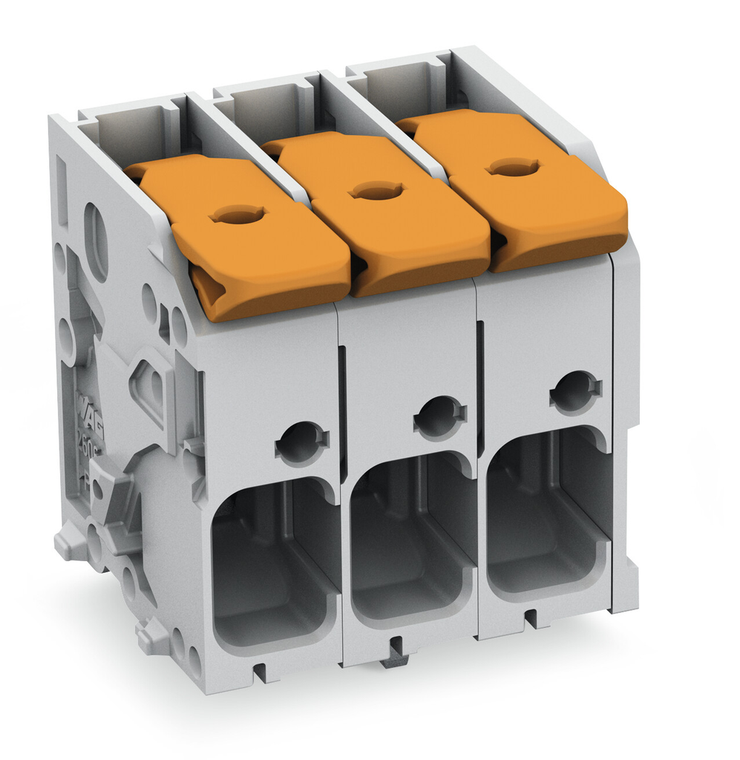

WAGO 2606-1102/020-005

SKU:

2606-1102/020-005

UPC:

MPN:

2606-1102/020-005

Condition:

New

actuation type:

Lever

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Red

color of actuator:

Orange

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

24.3 mm / 0.957 inch

drilled hole diameter with tolerance:

2 (+0.1) mm

fine stranded conductor:

0.2 10 mm / 24 8 AWG

fine stranded conductor with insulated ferrule:

0.25 6 mm

fine stranded conductor with twin ferrule:

0.25 2.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 6 mm

fire load:

0.113 MJ

flammability class per ul94:

V0

height:

28 mm / 1.102 inch

height from the surface:

24 mm / 0.945 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

800 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

7.5 mm / 0.295 inch

pole no:

2

rated current:

41 A

rated current csa use group b:

31 A

rated current csa use group c:

31 A

rated current ul use group b:

31 A

rated current ul use group c:

31 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

1.5 x 1.2 mm

solder pin length:

4 mm

solid conductor:

0.2 10 mm / 24 8 AWG

strip length:

11 13 mm / 0.43 0.51 inch

weight:

8.068 g

width:

17.85 mm / 0.703 inch
